Bussmann® LIMITRON™ KTS-R-600 Current Limiting Fast Acting Fuse, 600 A, 600 VAC, 200 kA Interrupt, Class RK1

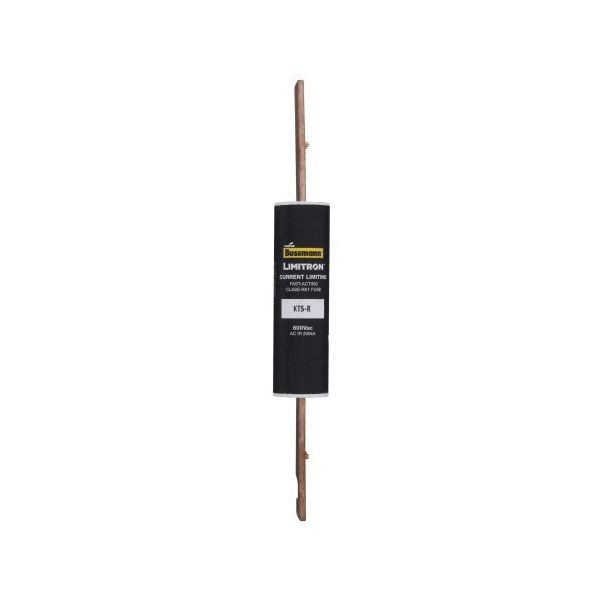

Selected KTS-R-80Bussmann® LIMITRON™ KTS-R-200 Current Limiting Fast Acting Fuse, 200 A, 600 VAC, 200 kA Interrupt, Class RK1
KTS-R-80Bussmann® LIMITRON™ KTS-R-200 Current Limiting Fast Acting Fuse, 200 A, 600 VAC, 200 kA Interrupt, Class RK1

Documents

Short Description

Eaton’s Bussmann® series Limitron fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses*. These current-limiting UL® and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200 kA interrupting rating.

Features

  • Provides a high degree of short circuit current- limitation(component protection)
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Incorporates Class R rejection feature. Can be inserted in non-rejection type fuse holders to physically and electrically replace Fast-Acting Class H, K1, K5, RK5, and other Fast-Acting fuses
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • Commonly used to protect circuit breakers with lower interrupting ratings
  • If used in circuits with surge currents (motors, etc.) must be sized to prevent unwanted opening
  • It is recommended to use an ultimate protection low peak LPS-RK time-delay use for inductive load applications
  • 200 kA at 600 VAC RMS symmetrical

Specification

Interrupt Rating
200 kA
Material
Melamine
Mounting Type
Holder
Amperage Rating
600 A
Voltage Rating
600 V
Application
For circuits and loads with no heavy surge currents of motors, transformers, solenoids, and welders
Body Size
2.5 in Dia x 13.38 in L
Body Style
Cartridge
Class
RK1
Element
Single
Standard & Approvals
UL 248-12, Guide JDDZ, File E4273, CSA C22.2 No. 248.12, Class 1422-02, File 53787, CE Certified, RoHS Compliant
Terminal Type
Knife Blade
