Bussmann® Low-Peak™ LP-CC-10 Current Limiting Time Delay Fuse, 10 A, 600 VAC/150 VDC, 200/20 kA Interrupt, Class CC

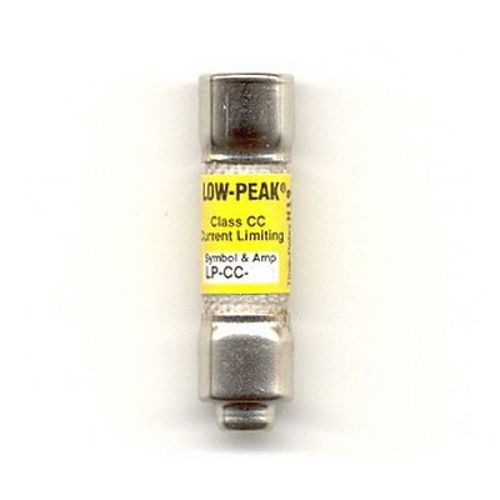

Selected FilesBUSLP CC 10
FilesBUSLP CC 10

Documents

Short Description

Eaton’s Bussmann® series low peak ultimate protection fuses are the industry’s only UL® Listed and CSA Certified fuses with a 300kA interrupting rating, providing 50% more protection than any other listed fuse*. The high interrupting rating allows for simple, worry-free installation in virtually any application. low peak fuses are available in Class CC, CF, J, L and RK1, so there is a fuse to meet the vast majority of 600V over current protection needs. Plus, when upgrading to low peak fuses, existing fuse inventory can be reduced by up tofuse.

Features

  • Time-delay coupled with Class CC current limiting response provides close sizing on small motor and relay circuits, and maximum component short circuit current rating protection
  • 200kA interrupting rating provides high ratings for control circuit locations
  • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser rated supplementary fuses
  • Inventory consolidation of 13/32 x 1 1/2 in supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse
  • Selective coordination ratio of 2:1 (within low peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
  • Finger-safe design with the Bussmann series Class CF CUBE Fuse

Specification

Interrupt Rating
200/20 kA
Material
Melamine
Mounting Type
Holder
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Color
Yellow
Element
Dual
Amperage Rating
10 A
Terminal Type
Ferrule
Standard & Approvals
UL 248-4, Guide No. JDDZ, File No. E4273, CSA Class 1422-02, File No. 53787, CE Certified, RoHS Compliant
Response Time
12 sec at 200%
Class
CC
Application
Branch Circuits, Specialized Circuits, Industrial Control and Street Lighting (Isolated, In-Line Fuse Holder)
Voltage Rating
600 VAC/150 VDC
