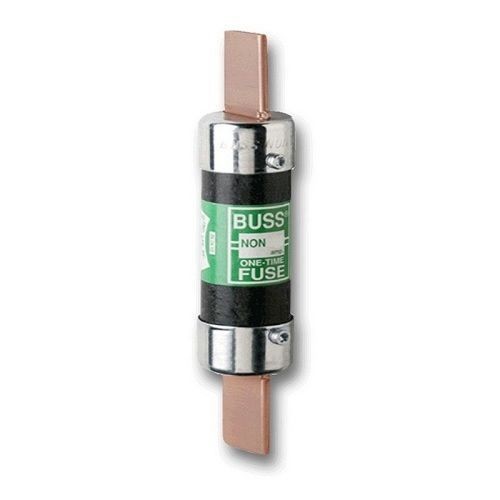

Bussmann® NON-100 Non-Current Limiting One-Time General Purpose Fuse, 100 A, 250 VAC/125 VDC, 10 kA Interrupt, Class H

Selected NON-100Bussmann® NON-100 Non-Current Limiting One-Time General Purpose Fuse, 100 A, 250 VAC/125 VDC, 10 kA Interrupt, Class H
NON-100Bussmann® NON-100 Non-Current Limiting One-Time General Purpose Fuse, 100 A, 250 VAC/125 VDC, 10 kA Interrupt, Class H

Documents

Short Description

World’s leading supplier of fuses and fusible protection systems, Bussmann® continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry’s first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann® products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. . . Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.

Features

  • Protect lighting, heating and other circuits not subject to temporary surges and where available short-circuit currents are relatively low
  • Non one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
  • Use Bussmann advanced protection FUSETRON™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual-element, time delay fuses
  • For general purpose circuits, size at A rating of circuit
  • For motor circuits, size at 300% to 400% according to the NEC® motor ampacity tables 430.247 to 430.250, per 430.6(A)(1)
  • 10 kA VAC RMS symmetrical interrupt rating
  • 10 kA at 250 VAC/10 kA at 125 VDC interrupt rating

Specification

Interrupt Rating
10 kA
Material
Melamine
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Amperage Rating
100 A
Body Style
Cartridge
Element
Single
Voltage Rating
250 VAC/125 VDC
Application
For light duty circuit locations
Terminal Type
Knife Blade
Standard & Approvals
UL 248-6, CSA Class 1421-01, File No. 53787, CE Certified, RoHS Compliant
Class
H
Catalog ID
BUSNON-100
Body Size
1.06 in Dia x 5.88 in L
