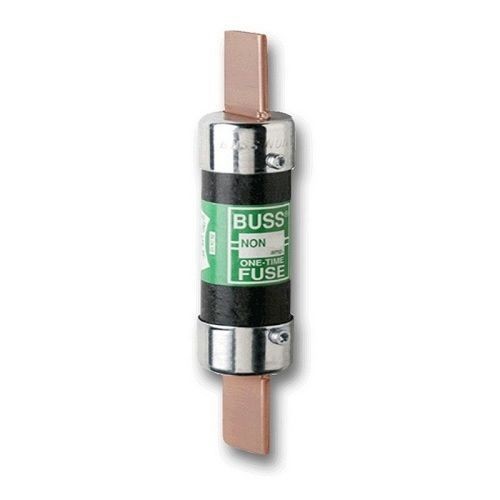

Bussmann® NON-25 Non-Current Limiting One-Time Electrical Fuse, 25 A, 250 VAC/125 VDC, 50 kA, Class K5, Cylindrical Body
Bussmann® NON-25 Non-Current Limiting One-Time Electrical Fuse, 25 A, 250 VAC/125 VDC, 50 kA, Class K5, Cylindrical Body
SKU: BUSNON-25
Manufacturer Part Number: NON-25
UPC: 051712101585
Documents
Features
- Protect lighting, Heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- NON one-time fuses do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur. Use Bussmann advanced protection FUSETRON™ FRN-R or ultimate protection low peak LPN-RK dual-element, time-delay fuses
- Non-current-limiting
- For general purpose circuits, size at A rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC® motor ampacity tables 430.247 to 430.250, per 430.6(A)(1)
- 50 kA at 250 VAC RMS sym
Specification
| Interrupt Rating | 50 kA |
|---|---|
| Material | Melamine |
| Mounting Type | Holder |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 25 A |
| Body Size | 0.56 in Dia x 2 in L |
| Body Style | Cylindrical |
| Class | K5 |
| Element | Single |
| Voltage Rating | 250 VAC/125 VDC |
| Application | For light duty circuit locations |
| Standard & Approvals | UL 248-9, CSA, CE Certified, RoHS Compliant |
| Terminal Type | Ferrule |
| Catalog ID | BUSNON-25 |
