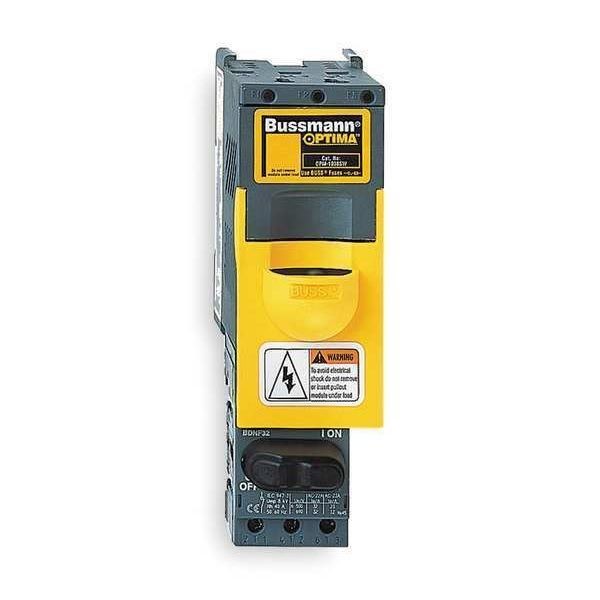

Bussmann® OPM-1038RSWC Overcurrent Protection Module With Communication, 600 VAC, 30 A, 3 Poles, Class CC Fuse

Selected OPM-1038RSWCBussmann® OPM-1038RSWC Overcurrent Protection Module With Communication, 600 VAC, 30 A, 3 Poles, Class CC Fuse
OPM-1038RSWCBussmann® OPM-1038RSWC Overcurrent Protection Module With Communication, 600 VAC, 30 A, 3 Poles, Class CC Fuse

Documents

Features

  • "Open" fuse indication lights
  • Finger-safe terminals (qualified as IP2O per IEC529)
  • Cam action handle for easy module removal
  • Dead front construction, no exposed contacts for added safety
  • Option for remote ''open fuse'' status indication feature available (reduces downtime)
  • Offered with class CC rejection clips or European 10 mm x 38 mm clips to meet global needs
  • Grey color
  • 100 kA SC rating
  • Rejection clips
  • Optima module

Specification

Material
Thermoplastic
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Amperage Rating
30 A
Voltage Rating
600 VAC/VDC
Height
5.72 in
Fuse Type
Class CC
Standard & Approvals
CSA C22.2 No 39, UL 508 File E161278
Catalog ID
BUSOPM-1038RSWC
