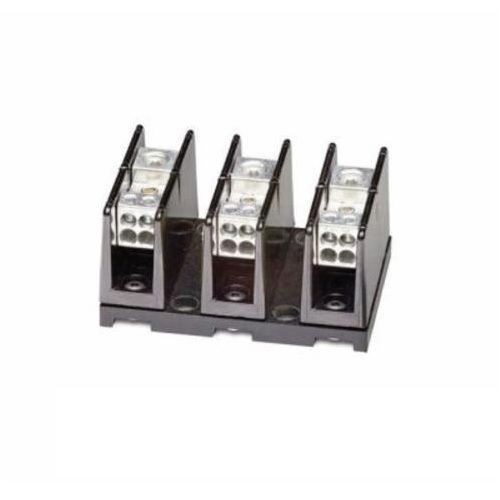

Bussmann® PDB370-1 Barrier Terminal Power Distribution Block, 600 VAC, 310 A, 1 Pole, 4 AWG - 350 kcmil Wire, Phenolic

Selected Bussmann® PDB370-1 Barrier Terminal Power Distribution Block, 600 VAC, 310 A, 1 Pole, 4 AWG - 350 kcmil Wire, Phenolic
Bussmann® PDB370-1 Barrier Terminal Power Distribution Block, 600 VAC, 310 A, 1 Pole, 4 AWG - 350 kcmil Wire, Phenolic

Short Description

Bussmann® series high Short-Circuit Current Rating (SCCR) power distribution blocks provide up to 200 kA SCCR and help achieve compliance with National Electrical Code (NEC®) and OSHA requirements by resolving a common SCCR "weak link" in industrial control panels. Available in 1-, 2- and 3-pole panel mount versions with popular lineside and loadside port configurations, these blocks are UL® Listed and provide the requisite spacing between uninsulated opposite polarities or ground by meeting the UL 1953 1" through air and 2" over surface for 301 to 600 volt applications. To increase application flexibility, these blocks feature dual-wire rated ports that accept copper or aluminum conductors while retaining a UL Listed status. Optional covers are available to enhance electrical safety.

Features

  • Tin plated aluminum connectors
  • PDBs are often an assembly's lowest-rated component or Features "weak link" and may limit the assembly SCCR to only 10kA, eliminate this weak link with these new, higher-rated PDBs
  • Equipment with low SCCRs are limited to locations where only low-level short-circuit current is available
  • By replacing a low-rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installation flexibility
  • 4 AWG - 350 kcmil copper line, (12) 14 - 4 AWG copper load
  • 200kA (8 - 4 AWG), 100kA (14 - 4 AWG)
  • Panel mount
  • 175/400 A Class CC, G, J, T fuse
  • (1) Box lug primary, (12) Box lug secondary

Specification

Fuse Type
175/400 A Class CC
Material
Phenolic
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=YMvqUyoETXk
Amperage Rating
310 A
Voltage Rating
600 VAC/VDC
Primary Connections/Pole
1
Secondary Connection/Pole
12
Short Circuit Current Rating
200 kA
Standard & Approvals
CSA Certified, CE Marked, IEC Rated, RoHS Complaint, UL 1953 Listed
Dimensions
3.38 in L x 1.96 in W x 3.32 in H
Catalog ID
BUSPDB370-1
