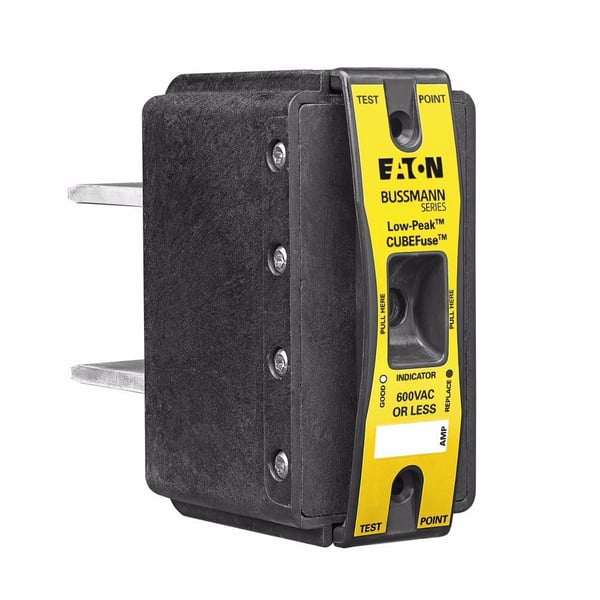

EATON Bussmann® Low-Peak™ CUBEFuse™ TCF400 Indicating Time Delay Fuse, 400 A, 600 V, 200 kA Interrupt, Class: CF, Square Body
EATON Bussmann® Low-Peak™ CUBEFuse™ TCF400 Indicating Time Delay Fuse, 400 A, 600 V, 200 kA Interrupt, Class: CF, Square Body
SKU: BUSTCF400
Manufacturer Part Number: TCF400
UPC: 051712697859
Documents
Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL class CF with Class J time delay electrical performance
- The indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak™ class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA rms symmetrical, 100 kA DC interrupting rating
Specification
| Interrupt Rating | 200 kA |
|---|---|
| Material | Glass Filled Polyethersulfone |
| Mounting Type | Holder |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 400 A |
| Body Size | 3.46 in W x 1.69 in D x 4.25 in H |
| Body Type | Square |
| Catalog ID | BUSTCF400 |
| Class | CF |
| Element | Dual |
| Voltage Rating | 600 V |
| Application | Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel Applications, Stationary Machinery and Equipment Outside Factory |
| Response Time | 10 s |
| Standard & Approvals | RoHS Compliant, UL File No. E4273, UL Guide JDDZ |
| Terminal Type | Blade |
