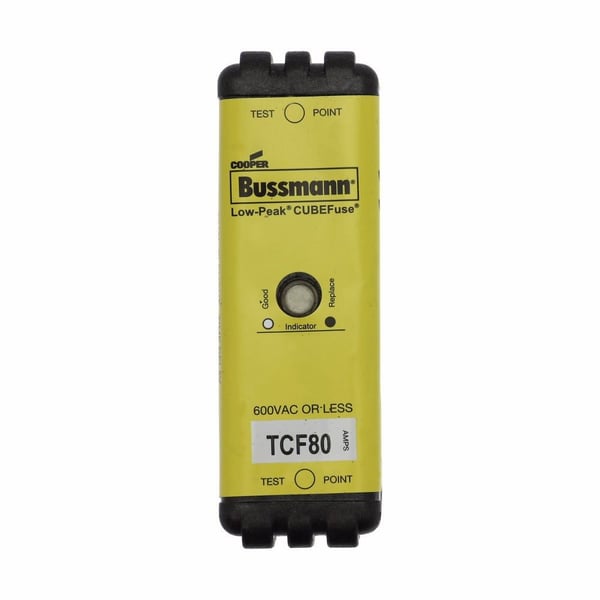

Bussmann CUBEFuse™ TCF80 Indicating Non-Rejection Time Delay Fuse, 80 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, Square Blade Body
Bussmann CUBEFuse™ TCF80 Indicating Non-Rejection Time Delay Fuse, 80 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, Square Blade Body
SKU: BUSTCF80
Manufacturer Part Number: TCF80
EAN: 5027590228466
UPC: 051712618168
Short Description
Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID™ open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC® motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak™ class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- 10 s at 500% response time
Specification
| Response Time | 10 s at 500% |
|---|---|
| Series | TCF |
| Terminal Type | Blade |
| Type | Indicating Non-Rejection |
| Voltage Rating | 600 VAC/300 VDC |
| Application | Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory |
| Standard & Approvals | CE Certified, CSA 1422- 02, RoHS Compliant, UL File No. 53787, UL File No. E4273, UL Guide JFHR |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 80 A |
| Body Size | 3.01 in L x 1 in W x 1.26 in H |
| Body Type | Square Blade |
| Catalog ID | BUSTCF80 |
| Class | CF |
| Element | Dual |
| Interrupt Rating | 100/300 kA |
| Material | Glass Filled Polyethersulfone |
| Mounting Type | Chassis/DIN Rail |
| EANUCC13 | 5027590228466 |
