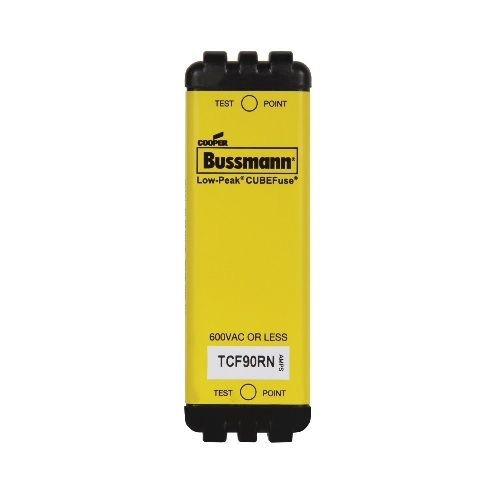

Bussmann® CUBEFuse™ TCF90RN Non-Indicating Time Delay Fuse, 90 A, 600 VAC, 300 VDC, 50/200/300 kA, Class CF, Cartridge Body
Bussmann® CUBEFuse™ TCF90RN Non-Indicating Time Delay Fuse, 90 A, 600 VAC, 300 VDC, 50/200/300 kA, Class CF, Cartridge Body
SKU: BUSTCF90RN
Manufacturer Part Number: TCF90RN
UPC: 051712236188
Documents
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let-through currents under fault conditions
- Provides type 2 "No Damage" protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak® class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and down stream fuses
- 300 kA for UL, 200 kA for CSA at 600 VAC, 50 kA at 300 DC for UL/CSA interrupt rating
Specification
| Interrupt Rating | 50/200/300 kA |
|---|---|
| Material | Glass Filled Polyethersulfone |
| Mounting Type | DIN Rail/Chassis |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=YMvqUyoETXk |
| Amperage Rating | 90 A |
| Body Size | 3.01 in L x 1 in H |
| Body Style | Cartridge |
| Catalog ID | BUSTCF90RN |
| Class | CF |
| Element | Dual |
| Voltage Rating | 600 VAC/300 VDC |
| Application | Electrical Panelboard, Industrial Control, Machinery Disconnects, Required Finger Safe Systems |
| Response Time | 10 s |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Guide JFHR, File No. E4273, CSA Class 1422- 02, File No. 53787, CE Certified |
| Terminal Type | Plug-In |
