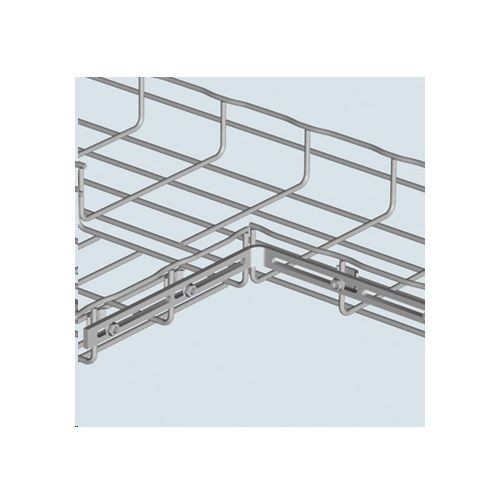

Cablofil® 941052 EZT Bend and Tee Bend Kit, 90 deg, Steel

Selected EZT90EZCablofil® 941052 EZT Bend and Tee Bend Kit, 90 deg, Steel
EZT90EZCablofil® 941052 EZT Bend and Tee Bend Kit, 90 deg, Steel

Short Description

Cablofil Wiremesh cable tray concept based upon performance safety and economy; three qualities which make Cablofil Wiremesh cable tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease-of creating fittings, carried out on-site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation.

Features

  • 90 deg brace is constructed of heavy gauge pre-galvanized metal
  • 1 kit contains hardware for (1) 90 deg tee or (2) 90 deg bends
  • Slotted design fits any size tray and eliminates precise tray alignment

Specification

Height
3/4 in
Length
8.86 in
Material
Steel
Series
EZT
Standard & Approvals
UL Listed
Angle
90 deg
Finish
Pre-Galvanized/Electro-Plated Zinc
Includes
(8) EZ BN 1-4, (8) CE 25, (4) CE 40 and (2) 90 deg braces
