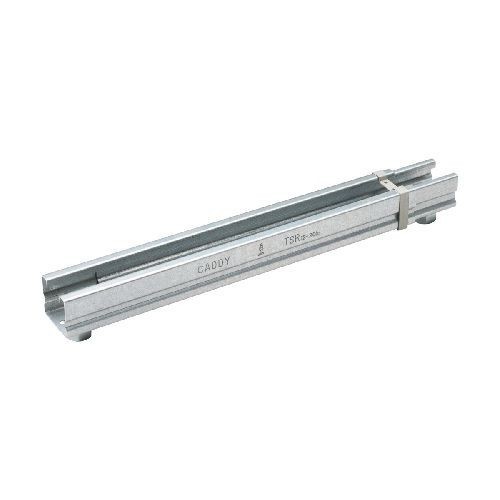

nVent CADDY TSR1220 Trapeze Bracket Assembly, 3/8 in Dia Rod, 300 lb Static 1/200 lb Static 2 Load, Steel, Pre-Galvanized, Domestic

Selected nVent CADDY TSR1220 Trapeze Bracket Assembly, 3/8 in Dia Rod, 300 lb Static 1/200 lb Static 2 Load, Steel, Pre-Galvanized, Domestic
nVent CADDY TSR1220 Trapeze Bracket Assembly, 3/8 in Dia Rod, 300 lb Static 1/200 lb Static 2 Load, Steel, Pre-Galvanized, Domestic

Short Description

The Telescoping Strut Replacement is an innovative alternative to using traditional strut channels for trapeze or other support structures that accommodates standard strut fittings. This telescoping solution eliminates the need to handle and cut long lengths of strut to size. The bracket telescopes to the desired length and is locked in place by snapping closed a spring retainer clip.

Features

  • Captive threaded nuts enable fastening to threaded rod supports without loose parts
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Integrated ruler displays space between hanger rods in inches and centimeters
  • Supports up to (7) 2 in conduits, (6) 2 in water filled pipes at 10 ft spacing or up to 18 in cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut
  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Finish
Pre-Galvanized
Standard & Approvals
BAA Compliant
Load Capacity
300 lb Static 1/200 lb Static 2
Dimensions
14 to 21-1/2 in L x 1-5/8 in W
Catalog ID
CADTSR1220
Domestic/Import
Domestic
Thickness
0.04
Includes
3/8 in Nut
Rod Diameter
3/8/2025 12:00:00 AM
