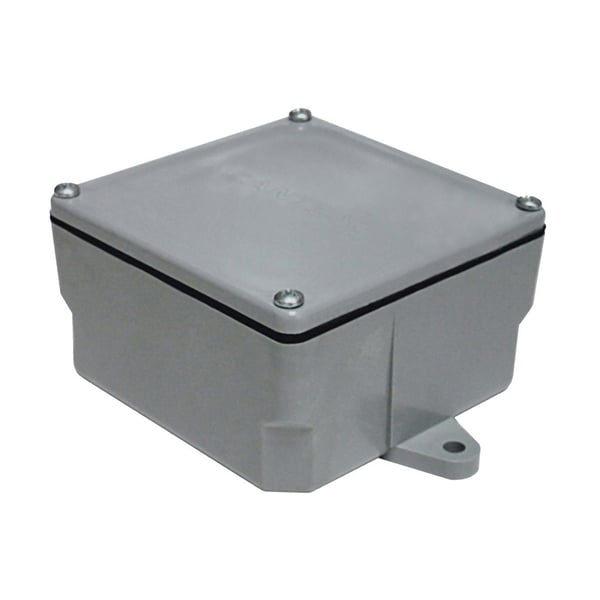

CANTEX® 5133710 Molded Conduit Junction Box, 6 x 6 x 4 in, 132 cu-in, PVC

Selected 5133710CANTEX® 5133710 Molded Conduit Junction Box, 6 x 6 x 4 in, 132 cu-in, PVC
5133710CANTEX® 5133710 Molded Conduit Junction Box, 6 x 6 x 4 in, 132 cu-in, PVC

Documents

Short Description

CANTEX is a leading producer of PVC products, with eight manufacturing facilities located strategically from east to west across the country. These facilities feature some of the most modern production equipment and advanced process technology found anywhere in the industry. Production facilities include extrusion, injection molding, and fabrication processes to produce the broad lines of PVC Products which serve the power, utility, building construction, and communications markets.

Features

  • Appropriate round hole for conduit entrance must be cut
  • May be concrete encased or buried but not warranted or listed to be watertight for all circumstances
  • It is surface mounted and uses male/box adapters to secure multiple conduits to box
  • Rust and corrosion resistant and easy to install
  • Belled end eliminates the need for special coupling
  • May be used in underground applications
  • Schedule 40 can be used in walls, floors, and ceilings, schedule 80 is for above-ground and entrance applications
  • Zinc plated steel screw, neoprene gasket
  • 6.75 in L x 6.75 in W x 0.35 in D cover dimension

Specification

Material
PVC
Mounting Type
Surface
Size
6 x 6 x 4 in
Suitable For Use With
Schedule 40 and Schedule 80 PVC Conduit
Type
Molded
Application
For enclosure allows multiple conduits to be connected and wire splices made within
Standard & Approvals
UL File E205935 (QCUP), UL Control 92CM, Marine Listed, CSA Certified, RoHS Compliant
Color
Gray
Capacity
132 cu-in
Dimensions
4 in H x 6.438 in W x 6.438 in D
