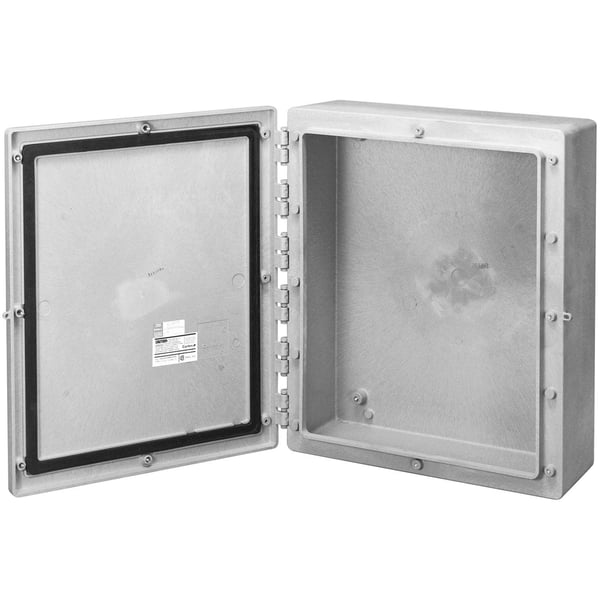

Carlon® Circuit Safe® C2420A4 Factory Assembled JIC Enclosure With Opaque Cover, 20 in W x 7-1/2 in D x 24 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Noryl

Selected C2420A4Carlon® Circuit Safe® C2420A4 Factory Assembled JIC Enclosure With Opaque Cover, 20 in W x 7-1/2 in D x 24 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Noryl
C2420A4Carlon® Circuit Safe® C2420A4 Factory Assembled JIC Enclosure With Opaque Cover, 20 in W x 7-1/2 in D x 24 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Noryl

Documents

Short Description

Manufactured from structural foam thermoplastic, Carlon® Circuit Safe® JIC enclosures provide high impact strength to eliminate dents and deformations along with high dielectric strength, excellent weathering capabilities and excellent resistance to a wide range of corrosive agents, acids, alkalines and salts. These CSA recognized enclosures also withstand wet and dirty environments, while their thick wall construction make them a particularly good choice wherever condensation is a concern. Rated for use in Type 1, 3, 3S, 3X, 3SX, 4, 4X, 12 and 13 environments, Carlon® Circuit Safe® JIC enclosures are suited for virtually all indoor/outdoor industrial, MRO and OEM applications. They are available in 10 sizes from 6 x 6 x 5 through 30 x 24 x 12 with a choice of screw or hinged design, opaque covers or clear polycarbonate covers which protect devices from hostile environments while allowing monitoring of instrumentation and/or electrical functions.

Features

  • Hinge caps make covers captive
  • Non-metallic mounting feet with all mounting hardware included
  • No rough corners, sharp edges or burrs
  • Non-conductive eliminates danger of electrical shock
  • Lid design provides greater usable internal volume
  • Ample interior space for ease of wiring
  • Fully gasketed
  • Ultraviolet stabilized for outdoor use
  • White painted 14 ga steel or 1/4 in PVC back panel
  • Brass screw inserts
  • 192 V/mil dielectric strength, 2.27 at 100 Hz, 2.18 at 106 Hz dielectric constant

Specification

Length
20 in
Lock
Padlock Latch
Material
Noryl
Mounting Type
Rail
NEMA Rating
NEMA 1/3/3S/3X/3SX/4/4X/12/13
Panel Size
21 in H x 17 in W
Series
C Series
Temperature Rating
-40 to 185 deg F
Type
Factory Assembled
Width
20 in
Application
Instrument Case, Junction and Terminal Boxes, Control and Switching Enclosures, Splice and Pull Boxes, Starter, Pushbutton and Transformer Housings, Meter and Transformer Cabinets
Standard & Approvals
JIC Compliant, CSA Certified
Color
Gray
Cover Type
Medium Hinged
Depth
24 in
Includes
Mounting Feet, Hinge Caps, Screws
