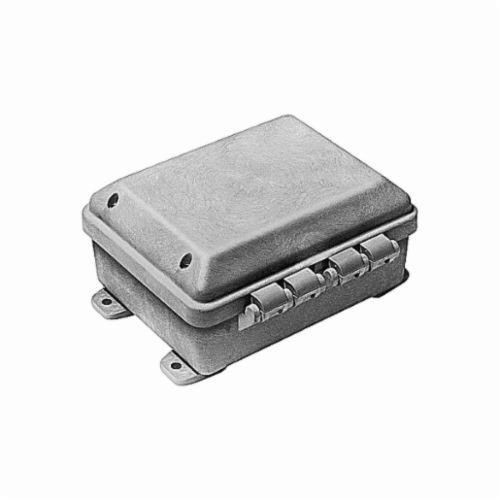

Carlon® Circuit Safe® CJ1085 Factory Assembled JIC Enclosure With Opaque Lid, 8 in W x 5 in D x 10 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Polycarbonate

Selected CJ863Carlon® Circuit Safe® CJ1085 Factory Assembled JIC Enclosure With Opaque Lid, 8 in W x 5 in D x 10 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Polycarbonate
CJ863Carlon® Circuit Safe® CJ1085 Factory Assembled JIC Enclosure With Opaque Lid, 8 in W x 5 in D x 10 in H, NEMA 1/3/3S/3X/3SX/4/4X/12/13, Polycarbonate

Documents

Short Description

Manufactured from structural foam thermoplastic, Carlon® Circuit Safe® JIC enclosures provide high impact strength to eliminate dents and deformations along with high dielectric strength, excellent weathering capabilities and excellent resistance to a wide range of corrosive agents, acids, alkalines and salts.

Features

  • Hinge caps make covers captive
  • White painted 14 gauge steel or 1/4 in PVC back panel (order separately)
  • 304 (18-8) stainless steel screw (10-32 x 1-1/8 in)
  • Lid design provides greater usable internal volume
  • Brass screw inserts
  • Completely nonmetallic hinges
  • Polycarbonate molded base and cover
  • No rough corners, sharp edges or burrs
  • Non-conductive, eliminates danger of electrical shock
  • Ample interior space for ease of working
  • Fully gasketed
  • Ultraviolet stabilized for outdoor use
  • Hinged opaque cover

Specification

Length
10 in
Lock
Padlock Latch
Material
Polycarbonate
Mounting Type
Wall
NEMA Rating
NEMA N12/4X
Panel Size
8.75 x 6.88 in
Series
Circuit Safe®
Temperature Rating
-40 to 185 deg F
Type
Single Door
Width
8 in
Application
Instrument Case, Junction and Terminal Boxes, Control and Switching Enclosures, Splice and Pull Boxes, Starter, Pushbutton and Transformer Housings, Meter and Transformer Cabinets
Standard & Approvals
UL E108856, CSA Certified, RoHS Complaint
Cover Type
Hinged
Depth
5 in
