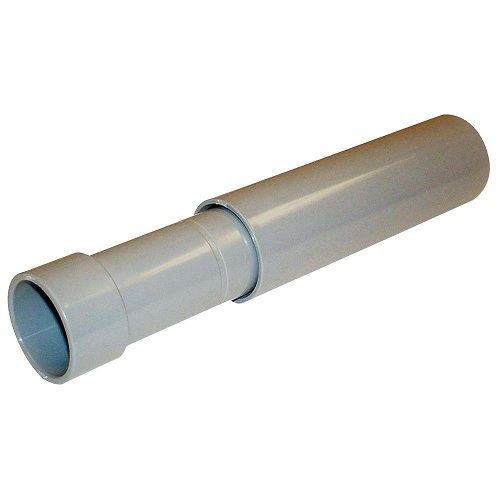

Carlon® E945H Conduit Expansion Coupling, 1-1/2 in, For Use With SCH 40 and SCH 80 Conduit, PVC

Selected Carlon® E945H Conduit Expansion Coupling, 1-1/2 in, For Use With SCH 40 and SCH 80 Conduit, PVC
Carlon® E945H Conduit Expansion Coupling, 1-1/2 in, For Use With SCH 40 and SCH 80 Conduit, PVC

Short Description

Carlon® products set the standard for non-metallic indoor and outdoor boxes, conduit bodies and fittings, enclosures and more. these premium products continue to supply the industry with innovative ideas, easier upgrades and a long, service-free product life.

Features

  • Exclusive 2 in expansion fitting with an 8 in travel distance
  • Exclusive molded in mid-point indicator on the piston
  • Two-piece molded design with lubricated seals for easier movement for the life of the product
  • Ridges on the fitting for easier installation, 2 in through 6 in only
  • Male terminal adapter end design
  • Two O-rings to prevent leakage
  • Can be installed vertically or horizontally
  • 1-1/2 in female socket end
  • 5.71 - 9.71 in opening size
  • 7.70 in mid-point length
  • 0.100 in wall thickness

Specification

Material
PVC
Series
E945
Size
1-1/2 in
Suitable For Use With
Schedule 40 and 80 Conduit
Type
Non-Metallic
Application
Designed to compensate for length changes due to temperature variations in exposed conduit runs
Standard & Approvals
cULus E32447 Listed, RoHS Complaint
Color
Gray
Dimensions
2.29 in OD x 9.71 in L
