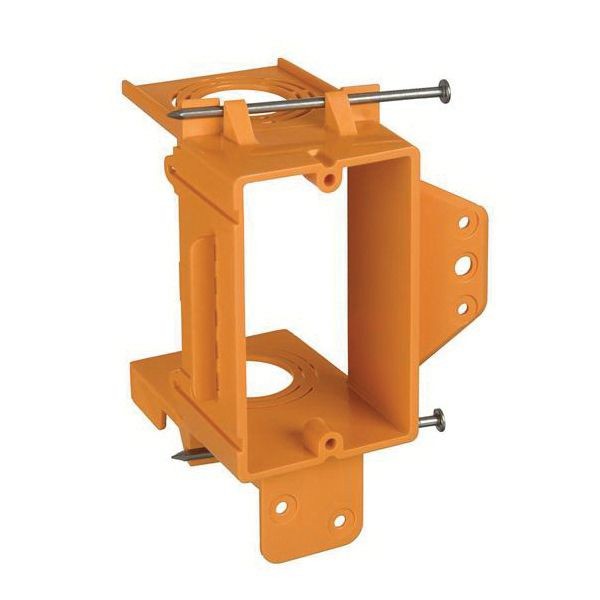

Carlon® SC100A 1-Gang Low Voltage Bracket, 3/4 in, 1 in, 1-1/4 in Resi-Rings, Non-Metallic, Orange

Selected SC100ACarlon® SC100A 1-Gang Low Voltage Bracket, 3/4 in, 1 in, 1-1/4 in Resi-Rings, Non-Metallic, Orange
SC100ACarlon® SC100A 1-Gang Low Voltage Bracket, 3/4 in, 1 in, 1-1/4 in Resi-Rings, Non-Metallic, Orange

Documents

Short Description

Here's the fast installation choice where only low voltage is required. Designed to fit a standard one-, two- or three-gang faceplate, these low voltage brackets feature an easy nail-on mounting or screw bracket, while a hard shell provides increased durability and no racking. Resi-rings accept 3/4 in, 1 in, and 11/4 in Resi-Gard® fittings (one-and two-gang versions only).

Features

  • Backless design accommodates large/deep low voltage devices
  • Eliminates cutting the backs off electrical boxes
  • Accommodates bend radius requirements for low voltage cabling
  • Provides ample space for installation
  • Mount flange for steel stud application
  • Resi-rings with Concentric knockouts
  • Horizontal mounting bracket
  • Screw mount option
  • Breakaway drywall support flange provides easy alignment for 1/2 in drywall
  • Breakaway vertical mounting flange
  • Breakaway feature allows the use of the low voltage add-on bracket
  • Captive angled nails or brackets for vertical or horizontal mounting

Specification

Material
Non-Metallic
Type
1-Gang
Color
Orange
Dimensions
3.73 in H x 2.32 in W x 3.15 in D
Standard & Approvals
UL File No. E216492
Specifications
3/4 in, 1 in, 1-1/4 in Resi-Rings
