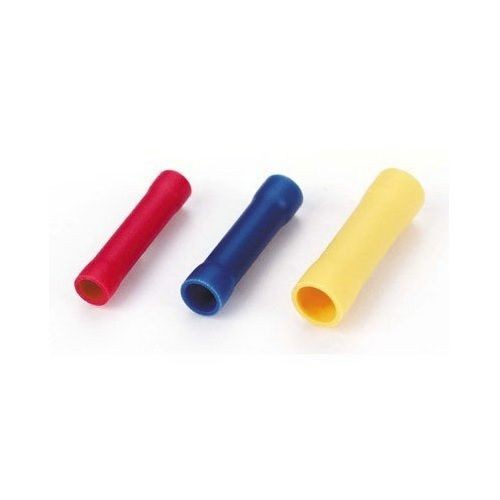

Catamount® TV14-BS-XV Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Brazed Seam/Expanded Entry/Internal Serration Barrel, Copper, Blue

Selected Catamount® TV14-BS-XV Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Brazed Seam/Expanded Entry/Internal Serration Barrel, Copper, Blue
Catamount® TV14-BS-XV Butt Splice, 16 to 14 AWG Conductor, 0.986 in L, Brazed Seam/Expanded Entry/Internal Serration Barrel, Copper, Blue

Documents

Short Description

While poly bags keep their contents dry, they don’t offer much other protection, and they aren’t environmentally friendly. That’s why Catamount® terminals now come in sturdy plastic containers that safeguard the connectors inside against crushing and can be re-used or recycled when empty. T&B is always adding value to its products. With the introduction of a durable plastic container, the value of T&B’s Catamount® terminals has been significantly enhanced. No more lost or spilled terminals because of inadequate packaging

Features

  • Expanded entry vinyl insulated
  • Brazed seam (yellow - tubular)
  • Internal barrel serrations
  • 15/Pack

Specification

Material
Copper
Temperature Rating
75 deg C
Type
Insulated
Voltage Rating
600 V
Standard & Approvals
CSA Certified, UL Listed
Dimensions
0.091 in ID x 0.177 in OD
Barrel Type
Brazed Seam
Color
Blue
Conductor Type
Copper
Finish
Tin Plated
Length
0.986 in
Conductor Size
16 to 14 AWG
Specifications
0.177 in OD x 0.091 in ID
