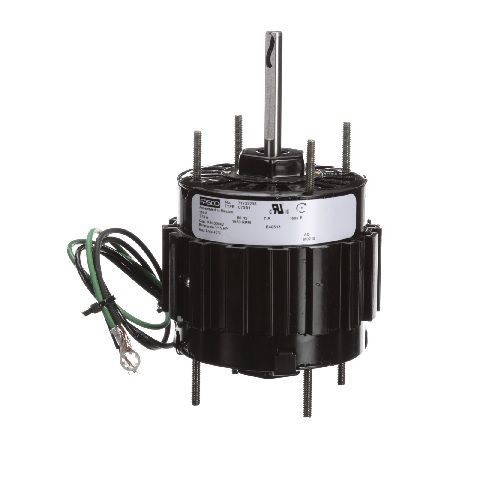

Century® by Packard D0042 Shaded Pole AC Motor, Open Enclosure, 1/15 hp, 115 VAC, 60 Hz, 1 ph Phase, NEMA 3.3 Frame, 1150 rpm Speed, Stud Mount
Century® by Packard D0042 Shaded Pole AC Motor, Open Enclosure, 1/15 hp, 115 VAC, 60 Hz, 1 ph Phase, NEMA 3.3 Frame, 1150 rpm Speed, Stud Mount
SKU: FASD0042
Manufacturer Part Number: D0042
UPC: 786674005946
Features
- Automatic overload protection
Specification
| Frame | NEMA 3.3 |
|---|---|
| Frequency Rating | 60 Hz |
| Mounting Type | Stud |
| Number of Speeds | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.9 A |
| Bearing Type | Sleeve |
| Catalog ID | FASD0042 |
| Dimensions | 3-3/8 in Dia |
| Enclosure Type | Open |
| Phase | 1 |
| Rotation | CWSE |
| Service Factor | 1 |
| Shaft Size | 5/16 in Dia x 2-1/2 in L |
| Speed | 1150 rpm |
| Type | Shaded Pole |
| Voltage Rating | 115 VAC |
| Horsepower | 1/15 hp |
