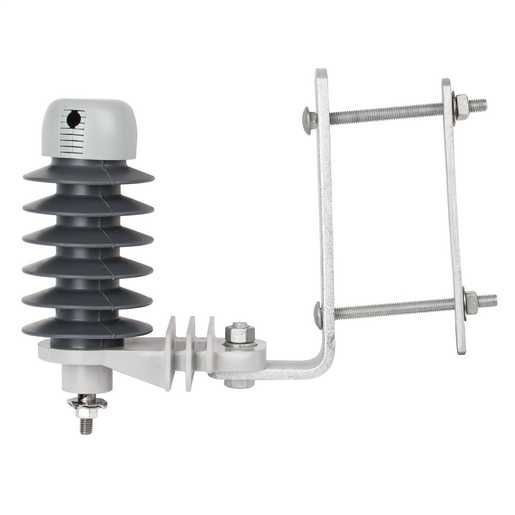

OHIO BRASS 2172597324 PDV-65 Optima Normal Duty Distribution Surge Arrester, 10 kV Duty Cycle, 26.3/28/29.8/33.6/38.8/48.5 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer

Selected 2172597324OHIO BRASS 2172597324 PDV-65 Optima Normal Duty Distribution Surge Arrester, 10 kV Duty Cycle, 26.3/28/29.8/33.6/38.8/48.5 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer
2172597324OHIO BRASS 2172597324 PDV-65 Optima Normal Duty Distribution Surge Arrester, 10 kV Duty Cycle, 26.3/28/29.8/33.6/38.8/48.5 kV Maximum Discharge, 8.4 kV Operating, ESP™ Polymer

Documents

Specification

Material
ESP Polymer
Mounting Type
Insulating Bracket with Disconnector
Operating Voltage
8.4 kV
Minimum Order Qty
1
Order Interval
1
Amperage Rating
75 A
Temperature Rating
115 deg C
Surge Protection Voltage
23.5 kV
Strike Distance
6.1 in
Duty Cycle Voltage
10 kV
Dimensions
9.4 in H
Creepage Distance
16.4 in
Catalog ID
HPS2172597324
