CHANCE® 88135G Earth Tension Expanding Bust Anchor, 8 in Hole, 5/8 in, 3/4 in Rod, 26500/22000/18000/15000/10000 lb Holding

Selected CHANCE® 88135G Earth Tension Expanding Bust Anchor, 8 in Hole, 5/8 in, 3/4 in Rod, 26500/22000/18000/15000/10000 lb Holding

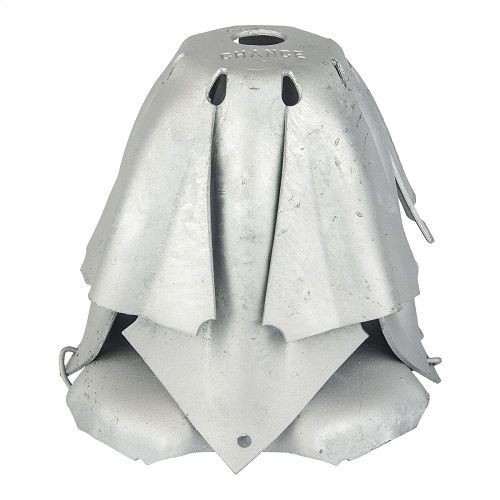

CHANCE® 88135G Earth Tension Expanding Bust Anchor, 8 in Hole, 5/8 in, 3/4 in Rod, 26500/22000/18000/15000/10000 lb Holding

Features

  • CHANCE® "bust" expanding anchors expand to take full advantage of the 8 blade wedges to expand into undisturbed soil
  • Nut retainer on bottom of anchor holds nut in place during installation
  • The effectiveness of the anchor is dependent upon proper size hole and the thoroughness of backfill tamping
  • 26500 lb at class 3, 22000 lb at class 4, 18000 lb at class 5, 15000 lb at class 6, 10000 lb at class 7, 8-way anchor holding capacity

Specification

Holding Capacity
26500/22000/18000/15000/10000 lb
Hole Size
8 in
Rod Size
5/8 in, 3/4 in
Type
Earth Tension
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, ASTM A153, RUS Listed
Expanded Area
135 sq-in
Finish
Hot Dipped Galvanized
