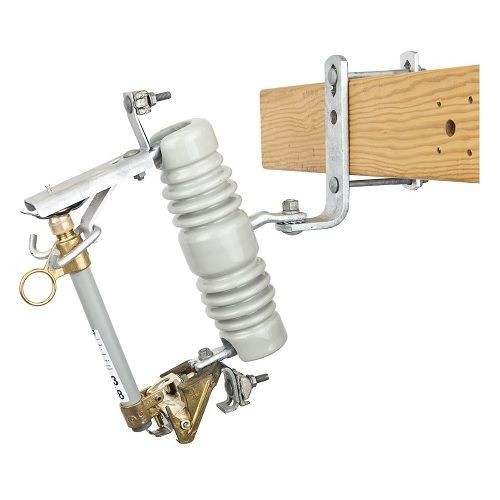

CHANCE® C710733PB Type C Standard Cutout, 36 kV Operating, 300 A, 170 kV BIL Rating, 12 kA Interrupt
CHANCE® C710733PB Type C Standard Cutout, 36 kV Operating, 300 A, 170 kV BIL Rating, 12 kA Interrupt
SKU: HPSC710733PB
Manufacturer Part Number: C710733PB
UPC: 096359244417
Features
- Without arrester
- 6 to 4/0 AWG solid copper, 250 kcmil stranded copper
- NEMA heavy duty type b bracket with captive 1-1/2 in bolt for crossarm mounting
Specification
| Interrupt Rating | 12 kA |
|---|---|
| Leakage to Ground | 720 mm |
| Material | Porcelain |
| Operating Voltage | 36 kV |
| Terminal Type | Parallel Groove Clamp |
| Terminal Wire Range | 6 to 4/0 AWG, 250 kcmil |
| Type | Type C Standard |
| Application | For sectionalizing device |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, ANSI Certified, RUS Listed |
| Amperage Rating | 300 A |
| BIL Rating | 170 kV |
| Includes | NEMA Heavy Duty Type B-Bracket |
