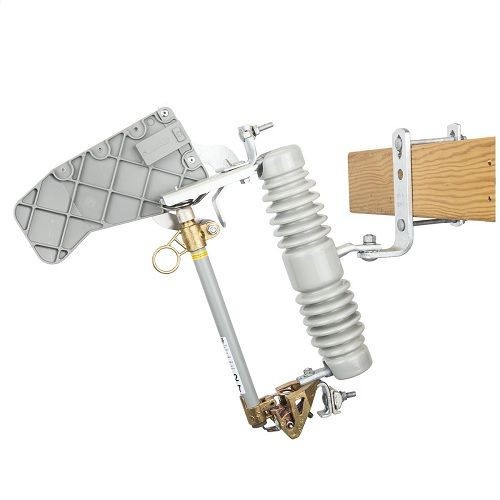

CHANCE® C730112PB 1-Phase Type C Loadbreak Cutout With Arc Chute Interrupter, 15 kV Operating, 100 A, 110 kV BIL Rating, 10 kA Interrupt

Selected CHANCE® C730112PB 1-Phase Type C Loadbreak Cutout With Arc Chute Interrupter, 15 kV Operating, 100 A, 110 kV BIL Rating, 10 kA Interrupt
CHANCE® C730112PB 1-Phase Type C Loadbreak Cutout With Arc Chute Interrupter, 15 kV Operating, 100 A, 110 kV BIL Rating, 10 kA Interrupt

Features

  • 6 solid to 4/0 AWG, 250 kcmil stranded
  • NEMA heavy duty type b bracket with captive 1-1/2 in bolt for crossarm mounting

Specification

Interrupt Rating
10 kA
Operating Voltage
15 kV
Terminal Type
Parallel Groove Clamp
Terminal Wire Range
6 to 4/0 AWG, 250 kcmil
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, ANSI Certified, IEEE Certified, RUS Listed
Amperage Rating
100 A
BIL Rating
110 kV
Type
1-Phase Type C
Temperature Rating
39 deg C
Material
Porcelain
Leakage to Ground
220 mm
Includes
NEMA Heavy Duty Type B-Bracket
Application
Distribution System Applications
