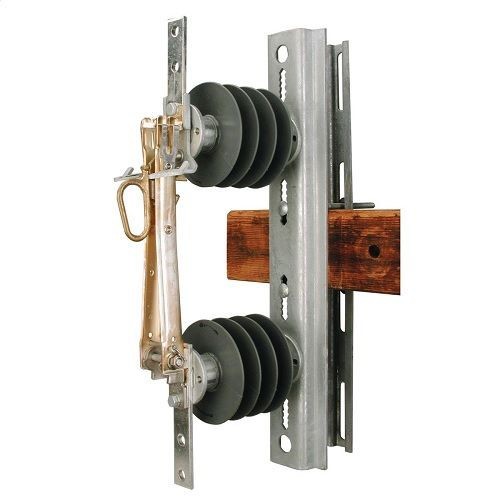

CHANCE® M3D68BPR 1-Phase Type M3 Hookstick Disconnect Switch, 34.5 to 38 kV, 600 A, Polymer Insulator, Distribution/Serrated Slot
CHANCE® M3D68BPR 1-Phase Type M3 Hookstick Disconnect Switch, 34.5 to 38 kV, 600 A, Polymer Insulator, Distribution/Serrated Slot
SKU: HPSM3D68BPR
Manufacturer Part Number: M3D68BPR
UPC: 096359358497
Specification
| Insulator Type | Polymer |
|---|---|
| Material | Hot Dipped Galvanized Steel |
| Mounting Type | Cross Arm |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RUS Listed, ANSI/IEEE Certified, ASTM A153 |
| Amperage Rating | 600 A |
| Color | Dark Gray |
| Includes | (2) Copper Alloy Bypass Studs and Parallel Groove Terminals |
| BIL Rating | 150 kV |
| Base Style | Distribution/Serrated Slot |
| Type | 1-Phase Type M3 |
| Specifications | 40 kA Momentary Current, 8 in L Bolt, 5000 lb Tension, Silver Contact |
| Voltage Rating | 34.5 to 38 kV |
