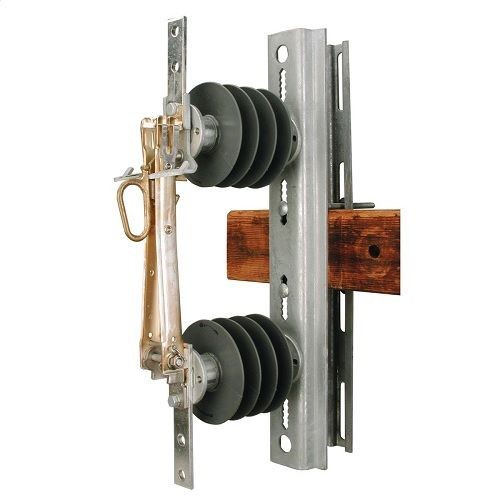

CHANCE® M3D98B 1-Phase Type M3D Hookstick Disconnect Switch, 34.5 to 38 kV, 900 A, 1 Poles, Polymer Insulator, Distribution/Serrated Slot
CHANCE® M3D98B 1-Phase Type M3D Hookstick Disconnect Switch, 34.5 to 38 kV, 900 A, 1 Poles, Polymer Insulator, Distribution/Serrated Slot
SKU: HPSM3D98B
Manufacturer Part Number: M3D98B
UPC: 096359321316
Specification
| Insulator Type | Polymer |
|---|---|
| Material | Hot Dipped Galvanized Steel |
| Mounting Type | Cross Arm |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 900 A |
| Base Style | Distribution/Serrated Slot |
| BIL Rating | 150 kV |
| Catalog ID | HPSM3D98B |
| Color | Dark Gray |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RUS Listed, ANSI/IEEE Certified, ASTM A153 |
| Application | Distribution System Applications |
| Voltage Rating | 34.5 to 38 kV |
| Type | 1-Phase Type M3D |
| Specifications | 40 kA Momentary Current, 8 in L Bolt, 5000 lb Tension, 2-Hole NEMA Pad Connection, Silver Contact |
