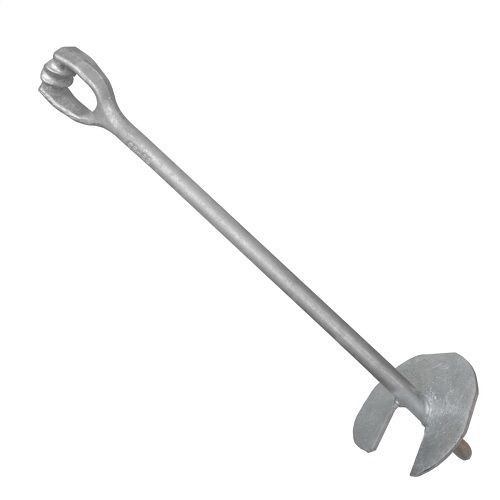

CHANCE® Hubbell Power Systems PS816 Tripleye No-Wrench Screw Anchor, 8 in Helix Anchor, 1 in Dia x 66 in L Rod, 6000/9000/11000 lb Holding

Pick Up Only
Selected HPSPS816
HPSPS816

Documents

Short Description

CHANCE® no-wrench screw anchors may be installed by hand or machine. The Thimble eye® eye or Tripleye® eye on the rod has a large opening to admit a turning bar for screwing the anchor down. The eye will also fit into an adapter available from most hole-boring machine manufacturers so the anchor may be power-installed. The no-wrench screw anchor consists of a drop-forged steel Thimble eye® eye or Tripleye® eye rod welded to a steel helix. The entire anchor is hot-dip galvanized for long resistance to rust. no-wrench screw anchors can be installed to a greater depth to reach a firmer soil by using an extension rod. Maximum installing torque is 2300 ft-lb for 1-1/4 in Dia rod.

Features

  • No wrench screw anchors can be installed to a greater depth to reach a firmer soil by using an extension rod
  • Maximum installing torque is 2300 ft-lb for 11/4 in Dia rod
  • 6000 lb at class 7, 9000 lb at class 6, 11000 lb at class 5

Specification

Material
Steel
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, ASTM A153
Finish
Galvanized
Anchor Size
8 in Helix
Application
For earth anchoring and hand or machine installation application
Type
Tripleye
Rod Length
66 in
Rod Diameter
1 in
Holding Capacity
6000/9000/11000 lb
