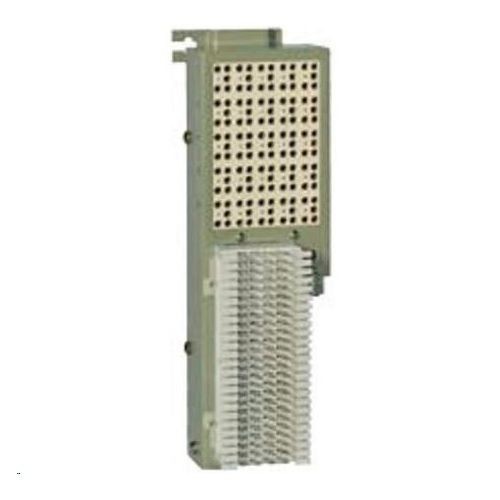

Circa 2625QC/QC 66 Block No Cover Building Entrance Terminal, 25 Pairs
Selected 2625QC/QCCirca 2625QC/QC 66 Block No Cover Building Entrance Terminal, 25 Pairs
Circa 2625QC/QC 66 Block No Cover Building Entrance Terminal, 25 Pairs
SKU: CIR2625QC/QC
Manufacturer Part Number: 2625QC/QC
Documents
Short Description
These 16 AWG steel building entrance terminals feature reliable 66 block style quick clip connectors for both input and output terminals. Connectors can accept up to an 18 AWG line termination. Also included are multiple external and internal ground lugs. UL approval standard on all terminals. Standard 5-pin protector modules, available in gas tube, solid state and hybrid versions, can be purchased separately.
Features
- 16 AWG powder coated steel construction
- Equipped with an internal 26 AWG fuse link
- External ground connectors accept 6 to 14 AWG wire range
- Industry standard 5-pin design
- Exceeds UL497 primary protection standards
- 66 block accepts 22 to 26 AWG wire, 18 to 19 AWG stripped solid copper wire range
- Stackable to allow for future expansion
- Primary protector for communication circuits
- Indoor wall mount installation
Specification
| Ground Wire Gauge | 6 to 14 AWG |
|---|---|
| Number of Pairs | 25 |
| Series | 66 Block |
| Specifications | 66 Input/Output |
| Type | No Cover |
| Application | Indoor |
| Standard & Approvals | UL 497, cULus Listed, Buy America Act Approved |
| Dimensions | 10 in H x 3-1/2 in W x 3-1/4 in D |
