Blackburn® Locktite® 31013 1-Hole Mechanical Connector Lug, 4/0 AWG to 300 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper

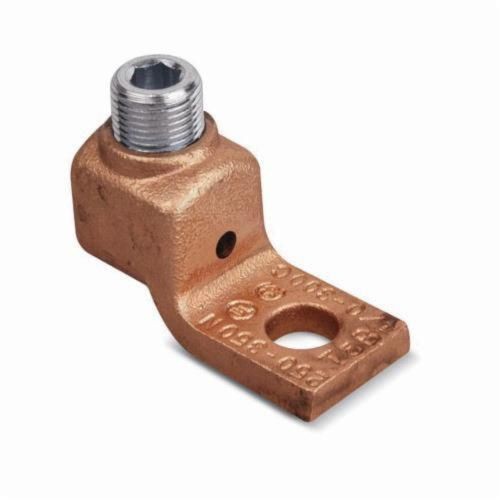

Selected 31011Blackburn® Locktite® 31015 1-Hole Mechanical Connector Lug, 300 to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper
31011Blackburn® Locktite® 31015 1-Hole Mechanical Connector Lug, 300 to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Holes, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Easily installed with key wrench
  • Convenient peephole permits easy inspection
  • Saddle and cable socket make direct, all-around, low resistance contact with cable

Specification

Material
Copper
Overall Length
2-3/4 in
Minimum Order Qty
1
Order Interval
1
Stud Size
1/2 in
Tongue Size
1-1/2 in L x 1-3/16 in W x 5/16 in THK
Type
1-Hole
Standard & Approvals
RoHS Compliant
Dimensions
2-3/4 in L x 1-3/16 in W x 1-17/32 in H
Conductor Size
4/0 AWG to 300 kcmil
Catalog ID
T-B31013
