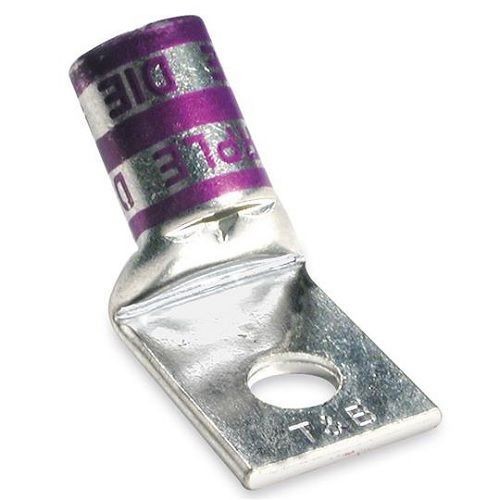

Color-Keyed® 54106UF 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, Inspection Window, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper

Selected Color-Keyed® 54106UF 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, Inspection Window, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper
Color-Keyed® 54106UF 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, Inspection Window, 4 AWG Copper Conductor, Die Code: 29, 1/4 in Stud, Copper

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper
  • Tin plated with inspection hole

Specification

Material
Copper
Stud Size
1/4 in
Tongue Size
0.6 in L x 0.55 in W x 0.09 in THK
Tongue Style
45 deg
Type
1-Hole
Voltage Rating
35 kV
Standard & Approvals
UL File No. E9809, CSA Certified, RoHS Compliant
Conductor Size
4 AWG
Barrel Size
0.37 in Dia
Barrel Style
Standard
Color Code
Gray
Conductor Type
Copper
Die Code
29
