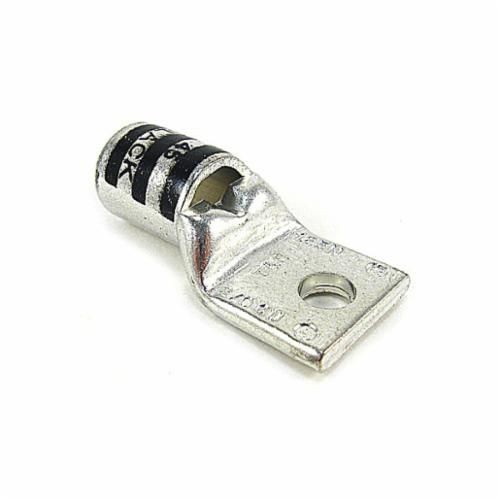

Color-Keyed® 54110 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 2/0 AWG Copper Conductor, Die Code: 45, 3/8 in Stud, Copper

Selected 54110Color-Keyed® 54110 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 2/0 AWG Copper Conductor, Die Code: 45, 3/8 in Stud, Copper
54110Color-Keyed® 54110 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 2/0 AWG Copper Conductor, Die Code: 45, 3/8 in Stud, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper

Specification

Material
Copper
Overall Length
1.93 in
Stud Size
3/8 in
Tongue Size
0.93 in L x 0.83 in W x 0.13 in THK
Tongue Style
Straight
Type
1-Hole
Voltage Rating
35 kV
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Conductor Size
2/0 AWG
Barrel Size
0.57 in Dia
Barrel Style
Standard
Color Code
Black
Conductor Type
Copper
Die Code
45
