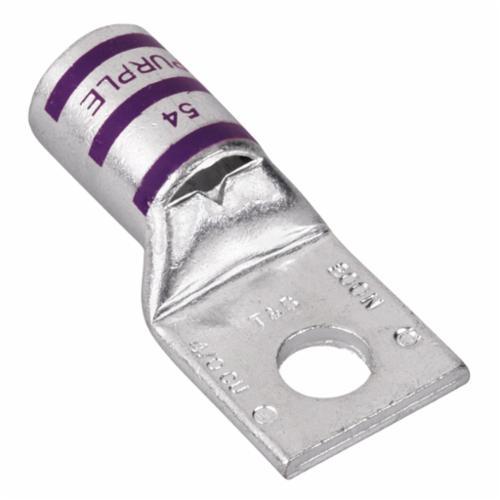

Color-Keyed® 54112 1-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code ERG2002, 3/8 in Stud, Copper

Selected 54170Color-Keyed® 54112 1-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code ERG2002, 3/8 in Stud, Copper
54170Color-Keyed® 54112 1-Hole Compression Lug, 4/0 AWG Copper Conductor, Die Code ERG2002, 3/8 in Stud, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper

Specification

Material
Copper
Overall Length
2.18 in
Minimum Order Qty
1
Order Interval
1
Barrel Size
0.7 in Dia
Barrel Style
Standard
Color Code
Purple
Conductor Size
4/0 AWG
Conductor Type
Copper
Stud Size
3/8 in
Tongue Style
Straight
Type
1-Hole
Voltage Rating
35 kV
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Die Code
ERG2002
Catalog ID
T-B54112
Tongue Size
0.93 in L x 1.03 in W x 0.14 in THK
