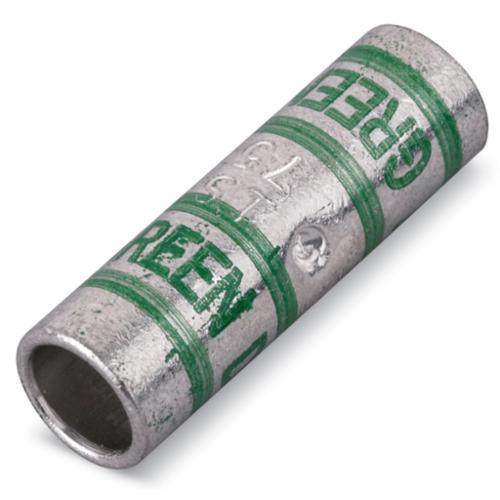

Color-Keyed® 54508 2-Way Standard Barrel Splice Connector, 1 AWG Copper Conductor, Die Code: 37, 1-1/2 in L, Copper

Selected 54508Color-Keyed® 54508 2-Way Standard Barrel Splice Connector, 1 AWG Copper Conductor, Die Code: 37, 1-1/2 in L, Copper
54508Color-Keyed® 54508 2-Way Standard Barrel Splice Connector, 1 AWG Copper Conductor, Die Code: 37, 1-1/2 in L, Copper

Documents

Short Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts.

Features

  • Two-way high conductivity connectors provide high pullout values
  • Easy to insulate and provide a low-resistance connection of high quality and low installed cost
  • Color coded for correct matching of installing die and connector
  • 35 Kv max voltage
  • 37 die code
  • 150/24 = 60.5 kcmil, 175/24 = 70.6 kcmil, NO 2 Weld, 133/.0223 wire size flex
  • 20/Pack, 200/pack

Specification

Length
1-1/2 in
Material
Wrought Copper
Type
Two-Way
Voltage Rating
600 VAC to 35 kV
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Conductor Size
1 AWG
Barrel Type
Standard
Color
Green
Conductor Type
Copper
Finish
Electro-Tin Plated
Dimensions
0.47 in Dia
