Color-Keyed® 54818 2-Way Long Barrel Splice Connector, 500 kcmil Copper Conductor, Die Code: 87, 4-3/4 in L, Copper

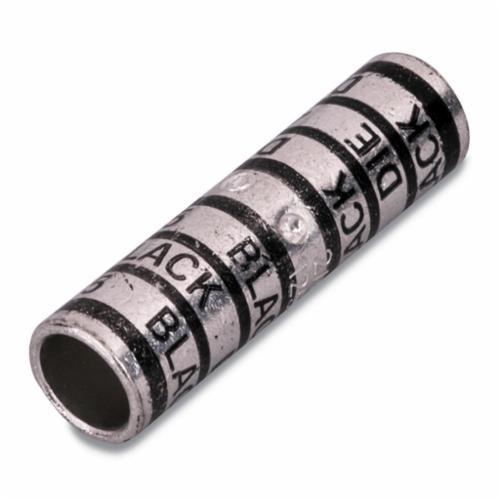

Selected 54818Color-Keyed® 54811 2-Way Long Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 2-1/4 in L, Copper
54818Color-Keyed® 54811 2-Way Long Barrel Splice Connector, 3/0 AWG Copper Conductor, Die Code: 50, 2-1/4 in L, Copper

Documents

Short Description

Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts.

Features

  • Two-way high conductivity connectors provide high pullout values
  • Easy to insulate and provide a low-resistance connection of high quality and low installed cost
  • Color coded for correct matching of installing die and connector
  • 35 Kv max voltage
  • 81 die code
  • 925/24 = 373 kcmil wire size flex
  • 6/Pack, 60/Pack

Specification

Length
4-3/4 in
Material
Wrought Copper
Voltage Rating
600 VAC
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Barrel Type
Long
Color
Brown
Conductor Type
Copper
Finish
Electro Tin Plated
Dimensions
1.11 in Dia
Conductor Size
500 kcmil
Type
Two-Way
