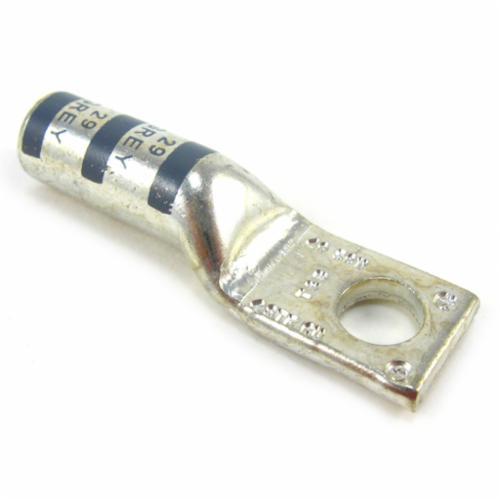

Color-Keyed® 54906BE 1-Hole Compression Lug, 4 AWG Copper Conductor, Die Code 29, 1/4 in Stud, Copper

Selected 54906BEColor-Keyed® 54906BE 1-Hole Compression Lug, 4 AWG Copper Conductor, Die Code 29, 1/4 in Stud, Copper
54906BEColor-Keyed® 54906BE 1-Hole Compression Lug, 4 AWG Copper Conductor, Die Code 29, 1/4 in Stud, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Connectors have colored bands or colored dots that correspond to color markings on the dies
  • Thomas & Betts Dies offer inspection capability
  • Color-Keyed® Connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
  • Connection by Compression
  • High quality connection at a low installed cost
  • High conductivity wrought copper construction
  • Stranded copper conductor
  • 1/4 in Hole Center to End

Specification

Material
Copper
Overall Length
1.7 in
Series
54900
Stud Size
1/4 in
Tongue Size
0.65 in L x 0.52 in W x 0.1 in THK
Tongue Style
Straight
Type
1-Hole
Voltage Rating
35 kV
Application
Used to provide a high degree of reliability in electrical wiring
Standard & Approvals
UL 486A, UL 467, CSA C22.2 No. 65, CSA C22.2 No. 04, RoHS Compliant
Conductor Size
4 AWG
Barrel Size
0.37 in Dia
Barrel Style
Blind End/Long
Color Code
Gray
Conductor Type
Copper
Die Code
29
