Color-Keyed® 58168 58100 1-Hole Non-Insulated Compression Lug With Peep Hole, 250 kcmil Flexible Copper Conductor, Die Code: 66, 1/2 in Stud, Copper

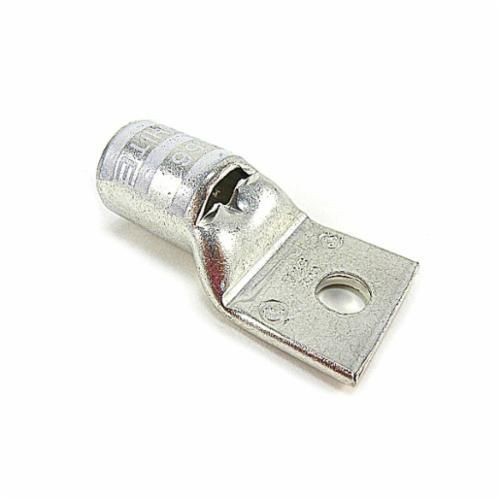

Selected 58168Color-Keyed® 54114 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 300 kcmil Copper Conductor, Die Code: 66, 1/2 in Stud, Copper
58168Color-Keyed® 54114 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 300 kcmil Copper Conductor, Die Code: 66, 1/2 in Stud, Copper

Documents

Short Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by Thomas & Betts. When using the Color-Keyed compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper
  • 250 kcmil flex conductor size

Specification

Material
Copper
Overall Length
2.7 in
Stud Size
1/2 in
Tongue Size
1.25 in L x 1.25 in W x 0.15 in THK
Tongue Style
Straight
Type
1-Hole
Voltage Rating
35 kV
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Conductor Size
250 kcmil
Barrel Size
0.85 in Dia
Barrel Style
Standard
Color Code
White
Conductor Type
Copper
Die Code
66
