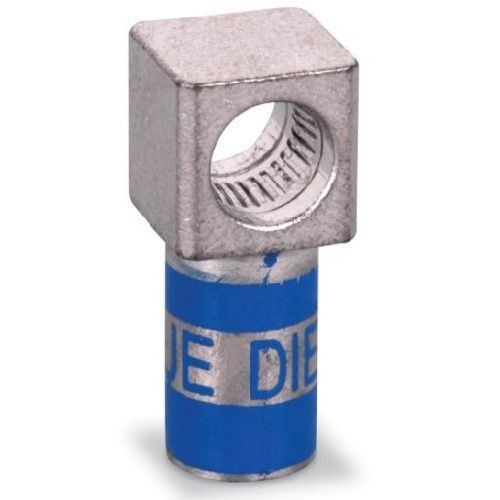

Color-Keyed® MD6F-1 1-Load Female Motor Lead Pigtail Disconnect, 6 AWG Beryllium Copper Conductor, Die Code: 24, Copper

Selected Color-Keyed® MD6F-1 1-Load Female Motor Lead Pigtail Disconnect, 6 AWG Beryllium Copper Conductor, Die Code: 24, Copper
Color-Keyed® MD6F-1 1-Load Female Motor Lead Pigtail Disconnect, 6 AWG Beryllium Copper Conductor, Die Code: 24, Copper

Short Description

Quick, reliable change-out of electric motors with no bolting, taping or loose connections

Features

  • One line to one load (2 wire)
  • Fast, snap-together assembly offers maximum labor savings
  • Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
  • Total assembly fits into tight motor housings
  • Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
  • Meet or exceed electrical and mechanical performance of bolted connections
  • Female disconnects equipped with beryllium copper interface band for dependable connections
  • Constructed of high-conductivity copper with tin-plating
  • KUBE female conductor
  • 100/Pack

Specification

Insulation Type
Boot MDBOOT1
Material
Copper
Mounting Hole Size
1/4 in
Minimum Order Qty
1
Order Interval
1
Color Code
Blue
Conductor Size
6 AWG
Specifications
Body Size 1
Type
One Load
Voltage Rating
600 VAC to 5 kV
Standard & Approvals
CSA Certified, RoHS Compliant, UL Listed
Dimensions
0.88 in L x 0.38 in W
Conductor Type
Beryllium Copper
Catalog ID
T-BMD6F-1
Strip Length
1/2 in
Die Code
24
