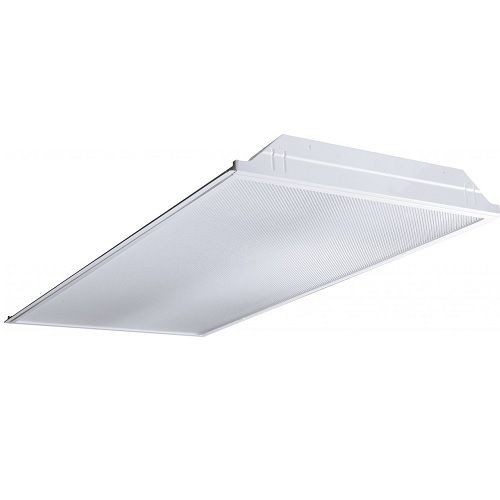

Columbia Lighting JT824-332G-FSA12-3EU Lensed Troffer, (3) Fluorescent Lamp, 120 to 277 VAC, Steel Housing
Columbia Lighting JT824-332G-FSA12-3EU Lensed Troffer, (3) Fluorescent Lamp, 120 to 277 VAC, Steel Housing
SKU: COLJT824-332G-FSA12-3EU
Manufacturer Part Number: JT824-332G-FSA12-3EU
UPC: 078531005627
Documents
Short Description
Features
- Inverted T-Bar ceiling
- T8 optimized fluorescent lensed troffer
- Shallow design frees up plenum space
- Hemmed fixture edges reduce risk of injury during fixture handling and installation
- Housing embossments provide extra strength and rigidity
- Corner hinging for easy insertion and removal of shielding frame
- Housing ends secured by unique corner interlock and screws
- Snap-in ballast cover requires no tools for wireway access
- Flush steel shielding frame, screw assembled for easy diffuser replacement
- Rotary action cam latches. Smooth operating for secure shielding retention
- Metal to metal light leak protection on all four sides of shielding frame
- Rotary lock lampholders for positive lamp contact
- Heat sink embossments behind ballasts for cooler operation, longer life
- 2 x 4 ft size
- Pattern 12 Acrylic
Specification
| Housing Material | Steel |
|---|---|
| Lamp Base | Bi-Pin |
| Lamp Type | Fluorescent |
| Lamp Wattage | 32 W |
| Lens Type | Acrylic |
| Light Color | White |
| Lumens | 2900 Lumens |
| Mounting Type | Ceiling |
| Number of Lamps | 3 |
| Series | JT824 |
| Type | Lensed |
| Voltage Rating | 120 to 277 VAC |
| Application | Commercial Lighting Spaces |
| Standard & Approvals | UL Listed 1598, CSA Certified |
| Dimensions | 48 in L x 24 in W x 3-1/8 in H |
| Ballast Type | Electronic |
