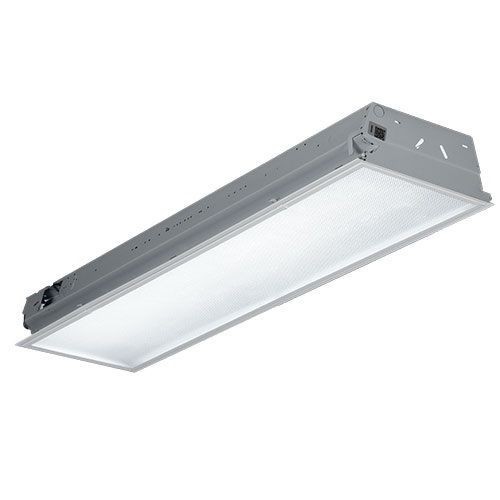

Columbia Lighting LJT24-40MLG-FSA12-EDU Medium Lumen Lensed Troffer, LED Lamp, 120 to 277 VAC, Steel Housing
Columbia Lighting LJT24-40MLG-FSA12-EDU Medium Lumen Lensed Troffer, LED Lamp, 120 to 277 VAC, Steel Housing
SKU: COLLJT2440MLGFSA12EDU
Manufacturer Part Number: LJT24-40MLG-FSA12-EDU
UPC: 078531123192
Documents
Short Description
Features
- Full distribution LED troffer
- Grid ceiling
- Direct replacement for fluorescent 2x2
- Long-life, 60,000 hour LEDs at L80 reduce life cycle maintenance costs
- Four LED color choices and 80 CRI
- Many shielding choices
- Two door frame choices
- Metal to metal light leak protection on all four sides of shielding frame
- Fixed output, step dimming (high/low/off), 0-10V dimming, 0-10V dimming-dim to dark drivers available
- Hinged optical system allows easy access to LED modules and electrical from below the ceiling
- 2 x 4 ft size
- 0 - 10 V Dimming Driver
- Pattern 12 Acrylic
Specification
| Housing Material | Steel |
|---|---|
| Lamp Type | LED |
| Lamp Wattage | 52 W |
| Lens Type | Acrylic |
| Light Color | White |
| Lumens | 5000 Lumens |
| Mounting Type | Ceiling |
| Number of Lamps | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/v/r0tCxMUlJk4;https://www.youtube.com/v/gFAUJgFkgZk |
| Ballast Type | Electronic |
| Catalog ID | COLLJT2440MLGFSA12EDU |
| Color Temperature | 4000 K |
| Dimensions | 48 in L x 24 in W x 3-1/8 in H |
| Type | Lensed |
| Voltage Rating | 120 to 277 VAC |
| Application | Commercial Lighting Spaces |
| Standard & Approvals | UL 1598, cUL Listed, CSA Certified Damp Location |
| Series | LJT |
