Wheatland FasTrak® Plus 8285 Standard Radius Conduit Elbow, 1 in Trade, 45 deg, Steel, Epoxy Modified Acrylic/Galvanized

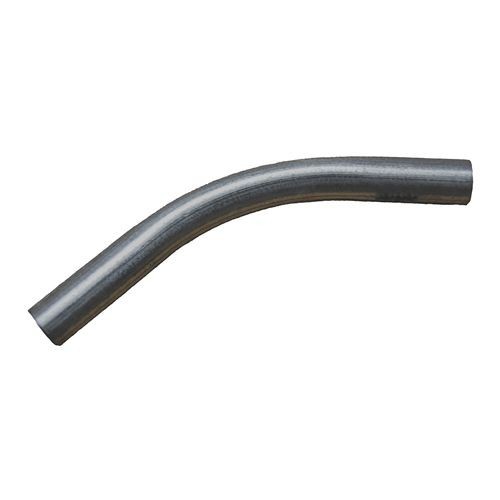

Selected 8285Wheatland FasTrak® Plus 8284 Standard Radius Conduit Elbow, 3/4 in Trade, 45 deg, Steel, Epoxy Modified Acrylic/Galvanized
8285Wheatland FasTrak® Plus 8284 Standard Radius Conduit Elbow, 3/4 in Trade, 45 deg, Steel, Epoxy Modified Acrylic/Galvanized

Documents

Short Description

Conduit Aluminum controls the manufacture of its hot dip galvanized steel rigid metal conduit (RMC), electrical Metallic tubing (EMT) and Intermediate metal conduit (IMC) every step of the way. we fabricate our own tubing from flat steel coils, weld it and do our own galvanizing. Then to be sure you get the same quality throughout the raceway system, we make our own nipples, elbows and couplings to match. in fact, we're the only conduit manufacturer who does.

Features

  • Made and melted in the United States
  • Inline galvanized OD and epoxy modified acrylic ID
  • EMT recognized as equipment grounding conductor by the NEC
  • Standard radius

Specification

Material
Steel
Suitable For Use With
EMT Conduit
Trade Size
1 in
Application
For used to change the direction of a raceway
Standard & Approvals
UL 797, CSA C22.2 83.1, ANSI C 80.3, Federal Specification WW-C-563
Angle
45 deg
Color
Silver/Gray
Finish
Epoxy Modified Acrylic/Galvanized
Dimensions
1.049 in ID x 1.163 in OD
Type
Standard Radius
Radius
5-3/4 in
