Approved Vendor B11056 Large Radius Conduit Elbow, 1-1/4 in Trade, 45 deg, Steel, Hot Dipped Galvanized

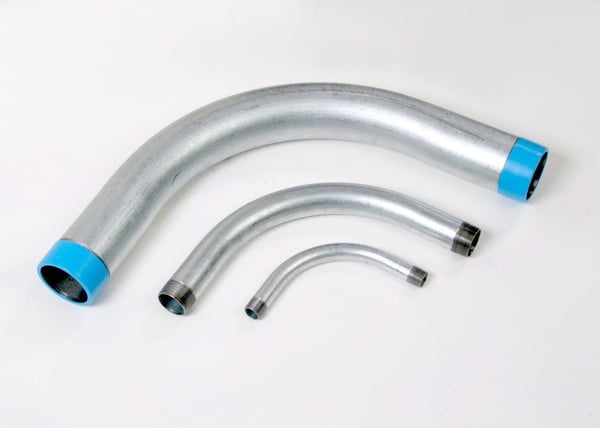

Selected 6295Wheatland 8015 Special Radius Conduit Elbow, 4 in Trade, 90 deg, Aluminum
6295Wheatland 8015 Special Radius Conduit Elbow, 4 in Trade, 90 deg, Aluminum

Documents

Short Description

Conduit Aluminum controls the manufacture of its hot dip galvanized steel rigid metal conduit (RMC), electrical Metallic tubing (EMT) and Intermediate metal conduit (IMC) every step of the way. we fabricate our own tubing from flat steel coils, weld it and do our own galvanizing. Then to be sure you get the same quality throughout the raceway system, we make our own nipples, elbows and couplings to match. in fact, we're the only conduit manufacturer who does.

Features

  • Made and melted in the United States
  • RMC recognized as equipment grounding conductor by the NEC
  • Standard radius
  • Permitted under all atmospheric conditions and occupancies
  • Shall be permitted to be installed in concrete, in direct contact with the earth
  • Permitted in areas of severe corrosive influences where protected by corrosion protection and judged suitable for the condition
  • Permitted in or under cinder fill where subject to permanent moisture when protected on all sides by a layer of non-cinder concrete not less than 2 in (50 mm) THK or with corrosion protection judged suitable for the condition
  • May be used with aluminum fittings and enclosures

Specification

Material
Steel
Radius
7-1/4 in
Suitable For Use With
Rigid Conduit
Trade Size
1-1/4 in
Type
Standard Radius
Application
For used to change the direction of a raceway
Standard & Approvals
UL 6, CSA C22.2 45, ANSI C 80.1, Federal Specification WW-C-581
Dimensions
1.394 in ID x 1.66 in OD
Angle
45 deg
Color
Silver/Gray
Finish
Hot Dipped Galvanized
