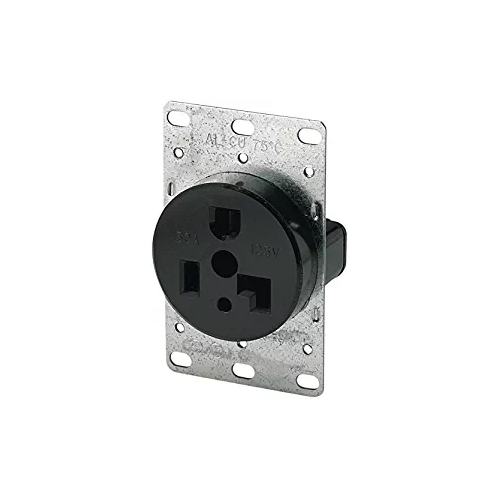

EATON Arrow Hart™ Eaton Wiring Devices 1233-BOX Single Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Selected 1233-BOXEATON Arrow Hart™ Eaton Wiring Devices 1233-BOX Single Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
1233-BOXEATON Arrow Hart™ Eaton Wiring Devices 1233-BOX Single Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Commercial & Industrial Power Receptacles 30A, 125V NEMA 5-30 2-Pole/3-Wire. Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.

Features

  • Flush receptacles feature heavy gauge galvanized steel mounting strap and glass-reinforced nylon body
  • Flush mounting
  • Grounding
  • Impact resistant thermoplastic insulation
  • Indoor environmental conditions
  • Screw connection
  • 2000 V dielectric strength
  • 10 - 4 AWG

Specification

Grade
Commercial
Material
Urea
NEMA Rating
NEMA 5-30R
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Color
Black
Voltage Rating
125 VAC
Standard & Approvals
CSA Certified, NOM 426, RoHS Complaint, UL 498
Terminal Type
Back Wired
Dimensions
3.28 in H x 2.5 in W x 1.81 in D
Catalog ID
EAG1233-BOX
