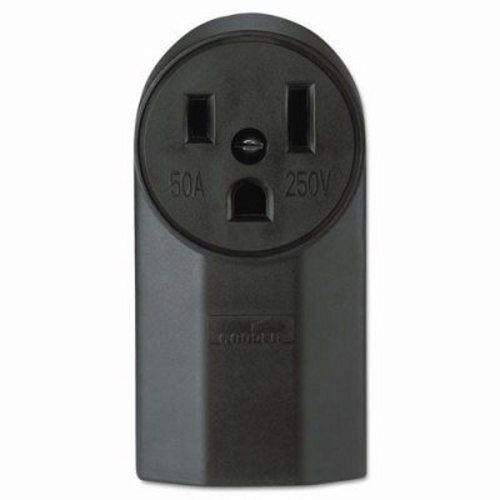

EATON Arrow Hart™ Eaton Wiring Devices 1252 Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Selected EATON Arrow Hart™ Eaton Wiring Devices 1252 Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black
EATON Arrow Hart™ Eaton Wiring Devices 1252 Single Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Documents

Short Description

Commercial & Industrial Power Receptacles 50A, 250V NEMA 6-50 2-Pole/3-Wire. Heavy duty design and construction make Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.

Features

  • Heavy gauge galvanized steel mounting strap for corrosion resistance
  • Grounding
  • For use with copper or aluminum wire
  • Surface receptacles have patented lay-in terminals that accept up to #4 AWG wire
  • Surface receptacle backs feature concentric knockouts and an adjustable cord clamp to allow wiring from back or bottom
  • Urea base
  • Nylon insulation
  • Screw connection
  • 2000 V dielectric strength
  • 10 - 4 AWG

Specification

Grade
Commercial
Material
Polypropylene
NEMA Rating
NEMA 6-50R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-4 to 158 deg F
Terminal Type
Back Wired
Voltage Rating
250 VAC
Standard & Approvals
CSA C22.2 NO 42, NOM Certified, RoHS Complaint, UL 498
Amperage Rating
50 A
Color
Black
