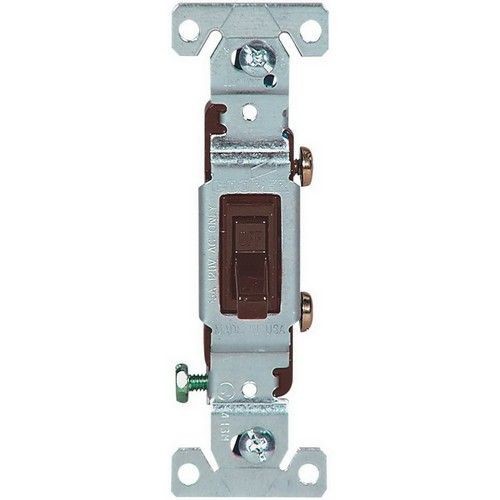

Eaton Wiring Devices Arrow Hart 1301-7B Toggle Switch, 120 VAC, 15 A
Eaton Wiring Devices Arrow Hart 1301-7B Toggle Switch, 120 VAC, 15 A
SKU: EAG1301-7B
Manufacturer Part Number: 1301-7B
UPC: 032664542794
Documents
Short Description
Features
- Three way switches feature additional push-in common termination for feed-through tapping
- Push-in terminals accept #14 solid wire only
- Side wire terminals accept up to #10 solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for No. 14 and 12 wire to speed installation
- Patented built-in wire looper for pre-looping
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Lighted toggle glows in OFF position
- Standard grade
- Grounding
- 2.13 in L back
- 3.28 in L screw to screw
- Framed toggle
- Side and push wire connection
Specification
| Mounting | Wall |
|---|---|
| Number Of Poles | 1 |
| Terminal Type | Screw |
| Voltage Rating | 120 VAC |
| Application | Residential |
| Standard & Approvals | cULus Listed to UL20, File No. E18704, NOM 426 Certified, RoHS Compliant |
| Amperage Rating | 15 A |
| Dimensions | 0.75 in W x 0.88 in D |
| Actuator | Toggle |
| Color | Brown |
| Environmental Conditions | -20 to 60 deg C |
