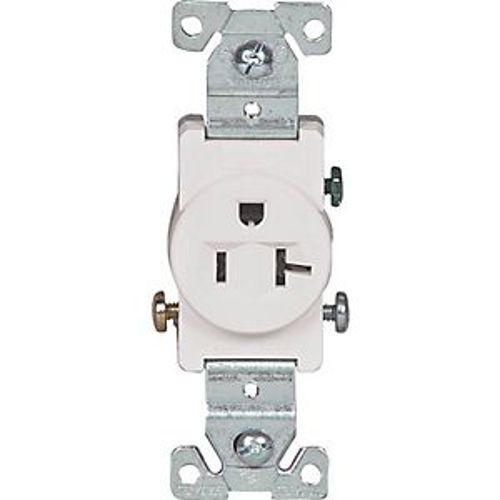

EATON Arrow Hart™ Eaton Wiring Devices 1877W-BOX 1877 Single Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Selected FilesEAG1877W BOX
FilesEAG1877W BOX

Documents

Short Description

Commercial Specification Grade Straight Blade Receptacles - 20A-125V, NEMA 5-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

Features

  • Galvanized steel, wrap-around yoke mounting strap for superior assembly security; extra length/width helps reach large panel cutouts
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
  • Tamper resistant receptacles provide compliance with 2014 NEC® Article 406.12 that states that all 15A & 20A, 125V receptacles installed in dwelling units must be tamper resistant
  • Flush mounting, screw connection
  • PVC bottom housing
  • Screw connection
  • 2000 V dielectric strength
  • UL 94 V-2 flammability rating
  • Grounding
  • Chemical and impact resistant
  • 14 - 10 AWG

Specification

Grade
Commercial
Material
Nylon
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-4 to 158 deg F
Terminal Type
Side Wired
Voltage Rating
125 VAC
Standard & Approvals
CSA Certified, RoHS Complaint, UL Listed
Amperage Rating
20 A
Dimensions
4.19 in H x 1.3 in W x 0.83 in D
Color
White
