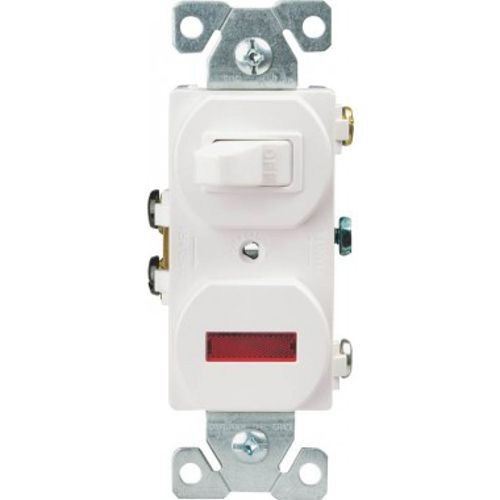

EATON Arrow Hart™ 277W-SP-L Duplex Toggle Combination Switch, 15 A at 120 VAC, 1 Poles
EATON Arrow Hart™ 277W-SP-L Duplex Toggle Combination Switch, 15 A at 120 VAC, 1 Poles
SKU: EAG277W-BOX
Manufacturer Part Number: 277W-BOX
UPC: 032664161902
Documents
Features
- Back and side wiring
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
- Thick steel mounting strap zinc-plated for corrosion resistance
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws backed out ready for wiring
- Side wire terminals accept up to No. 10 solid or stranded wire
- Pilot light may be wired to indicate power "on" or power "off"
- Combination slot/phillips head mounting and terminal screws ease installation
- Screw connection
- (1) Toggle switch, (1) pilot light
- Heavy duty brass contact
- Toggle actuator
- Switch action
- Thermoplastic top and back body are virtually unbreakable
- 25 W power
- Mounting straps are zinc plated to for added corrosion resistance
Specification
| Material | Thermoplastic |
|---|---|
| Number Of Poles | 1 |
| Operating Cycles | 30000 |
| Size | 4.19 in H x 1.3 in W x 1.08 in D |
| Application | Commercial |
| Standard & Approvals | CSA C22.2 File No. 10016, 6241-05 No. 111, No. 42 Certified, cULus Listed, NOM 426, RoHS Complaint, UL 20 File No. E18704 Listed |
| Amperage Rating | 15 A |
| Color | White |
| Electrical Rating | 15 A 120 VAC |
| Environmental Conditions | -20 to 60 deg C |
