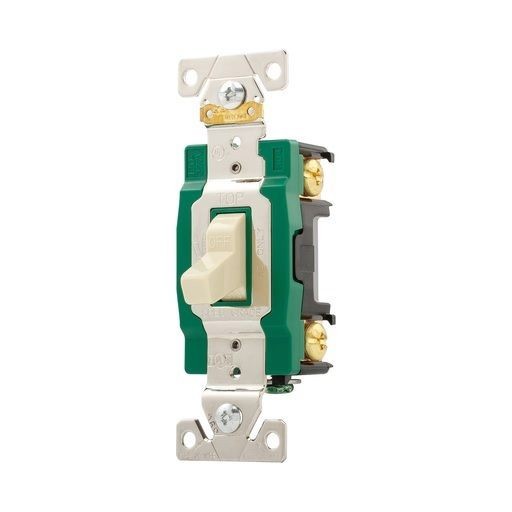

EATON Arrow Hart™ 3031FW Auto Ground Toggle Switch, 120/277 VAC, 30 A, 1/2 hp Power Rating

Selected 3031WEATON Arrow Hart™ 3031FW Auto Ground Toggle Switch, 120/277 VAC, 30 A, 1/2 hp Power Rating
3031WEATON Arrow Hart™ 3031FW Auto Ground Toggle Switch, 120/277 VAC, 30 A, 1/2 hp Power Rating

Documents

Short Description

Industrial grade toggle switches incorporate the most durable design elements in the industry and are horsepower rated to handle motor loads. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections. Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure. Ground screw terminal standard. 0.050 in (1.27mm) thick steel mounting strap zinc-plated for corrosion resistance. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers (slot/Robertson screws in Canada where available). Tri-combo screws.

Features

  • Lighted version toggle glows when in the OFF position
  • Color-coded faces identify amperage
  • Nylon toggle
  • 2.4 in L screw to screw
  • 1 hp at 120 VAC, 2 hp at 240 VAC
  • Premium
  • Back and side wire connection
  • UL 94-V0 Flammability

Specification

Material
Polycarbonate
Mounting
Wall
Number Of Poles
1
Operating Cycles
30000
Power Rating
1 hp/2 hp
Terminal Type
Screw
Voltage Rating
120/277 VAC
Application
Industrial
Standard & Approvals
cULus Listed to UL 20 File No. E18704, ROHS Compliant, UL Verified to Federal Specification WS-896-F
Amperage Rating
30 A
Actuator
Toggle
Color
White
Environmental Conditions
-20 to 70 deg C
Dimensions
3.28 In L x 1.31 in W x 1.05 in D
