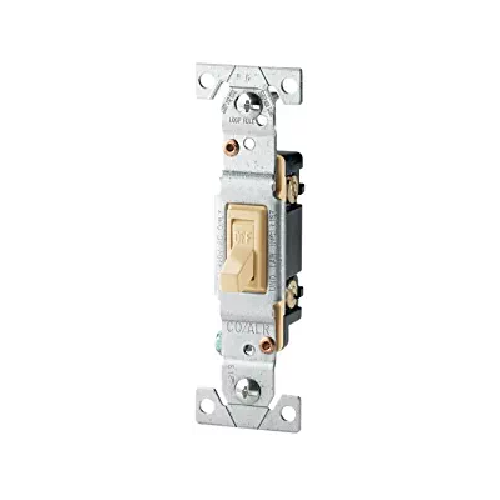

EATON Arrow Hart™ 5221-7V-SP-L 3-Way Standard Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
EATON Arrow Hart™ 5221-7V-SP-L 3-Way Standard Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
SKU: EAG5221-7V-BU
Manufacturer Part Number: 5221-7V-BU
UPC: 032664342905
Documents
Short Description
Features
- For direct connection to aluminum or copper wire
- Industrial design cam action mechanism ensures quiet switch action
- Side wire terminals accept up to No. 10 AWG solid copper wire and up to No. 10 AWG solid aluminum wire
- Terminal screws backed out-ready for wiring
- Patented built-in wire stripper for No. 14 and 12 wire to speed installation
- Combination Slot/Phillips head mounting and terminal screws ease installation (Slot/Robertson screws in Canada where available)
- Long, broad mounting strap virtually eliminates floating installations
- Standard grade
- 2.13 in L back
- 3.28 in L screw to screw
- Framed toggle
- Side wire connection
Specification
| Mounting | Wall |
|---|---|
| Number Of Poles | 1 |
| Terminal Type | Screw |
| Type | 3-Way |
| Voltage Rating | 120 VAC |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Color | Ivory |
| Environmental Conditions | -40 to 65 deg C |
| Dimensions | 0.75 in W x 0.88 in D |
| Standard & Approvals | CSA Certified to C22.2, No. 111, NEMA WD-1, RoHS Compliant, UL20, File No. E18704 |
| Power Rating | 1/2 hp |
