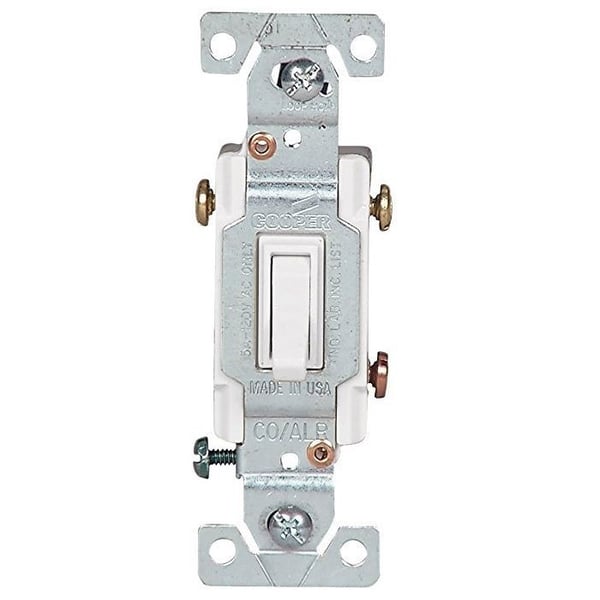

EATON Arrow Hart® 5223-7W-SP-L 3-Way Toggle Switch, 120 VAC, 15 A, 1/2 hp

Selected EATON Arrow Hart® 5223-7W-SP-L 3-Way Toggle Switch, 120 VAC, 15 A, 1/2 hp
EATON Arrow Hart® 5223-7W-SP-L 3-Way Toggle Switch, 120 VAC, 15 A, 1/2 hp

Documents

Short Description

Copper/Aluminum Toggle Switches for direct connection to aluminum or copper wire. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Industrial design cam action mechanism insures quiet switch action. Side wire terminals accept up to #10 solid or stranded copper wire, and up to #10 solid aluminum wire. Terminal screws backed out - ready for wiring. Combination slot/Phillips head mounting and terminal screws ease installation (slot/Robertson screws in Canada where available).

Features

  • For direct connection to aluminum or copper wire
  • Industrial design cam action mechanism ensures quiet switch action
  • Side wire terminals accept up to No. 10 AWG solid copper wire and up to No. 10 AWG solid aluminum wire
  • Terminal screws backed out-ready for wiring
  • Patented built-in wire stripper for No. 14 and 12 wire to speed installation
  • Combination Slot/Phillips head mounting and terminal screws ease installation (Slot/Robertson screws in Canada where available)
  • Long, broad mounting strap virtually eliminates floating installations
  • Standard grade
  • 2.13 in L back
  • 3.28 in L screw to screw
  • Framed toggle
  • Side wire connection

Specification

Mounting
Wall
Number Of Poles
1
Terminal Type
Screw
Voltage Rating
120 VAC
Amperage Rating
15 A
Actuator
Toggle
Color
White
Environmental Conditions
-40 to 65 deg C
Dimensions
0.75 in W x 0.88 in D
Standard & Approvals
CSA Certified to C22.2, No. 111, NEMA WD-1, RoHS Compliant, UL20, File No. E18704
Type
3-Way
Power Rating
1/2 hp
