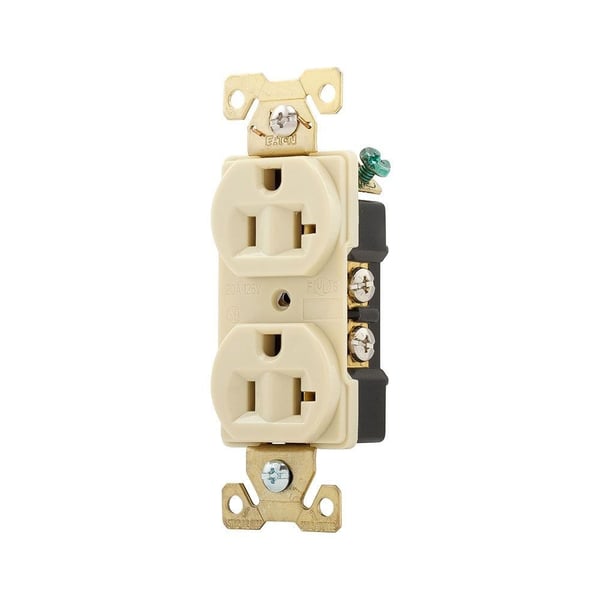

EATON Arrow Hart 5352V Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
EATON Arrow Hart 5352V Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: EAG5352V
Manufacturer Part Number: 5352V
UPC: 032664388606
Documents
Features
- Exclusive 5-leaf solid brass line contacts ensure lowest heat rise, smooth plug blade insertion, long-term retention
- 0.030 in (0.76 mm) solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability-assures superior ground integrity under heaviest use
- Rigid, glass reinforced nylon base lends ultimate strength & superior high heat resistance in contact carrier
- Unique screw terminal guards provide fast, easy insulation from conductive surfaces
- High impact and chemical resistant nylon face
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal (H-N-G) and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cutouts for Code Compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on device speeds mounting of wallplates
- Wall mounting
- Screw connection
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA Certified, NOM Certified, RoHS Complaint, UL Listed |
| Amperage Rating | 20 A |
| Color | Ivory |
