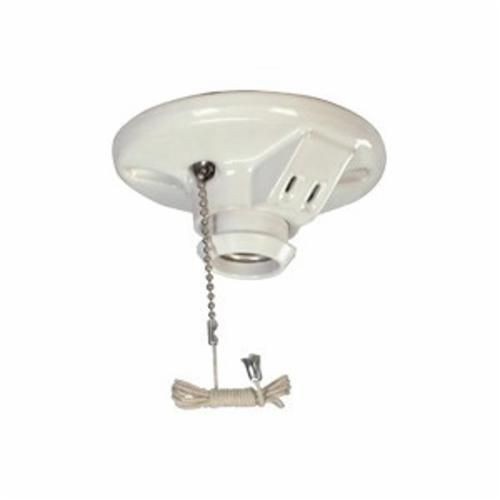

EATON Wiring Devices Arrow Hart™ 667-SP 2-Piece Ceiling Receptacle Lampholder With 2-Pole 3-Wire Outlet and Pull Chain Switch Lamp, 660 W Lamp, 125 VAC, 15 A, Medium

Selected 667-SPEATON Wiring Devices Arrow Hart™ 667-SP 2-Piece Ceiling Receptacle Lampholder With 2-Pole 3-Wire Outlet and Pull Chain Switch Lamp, 660 W Lamp, 125 VAC, 15 A, Medium
667-SPEATON Wiring Devices Arrow Hart™ 667-SP 2-Piece Ceiling Receptacle Lampholder With 2-Pole 3-Wire Outlet and Pull Chain Switch Lamp, 660 W Lamp, 125 VAC, 15 A, Medium

Documents

Short Description

Our extensive lampholder line covers applications inside and outside the home, incandescent and fluorescent lamp loads, temporary lighting needs and a variety of adapters for new and replacement lighting applications. they are ideal for areas such as garages, closets, attics, basements, utility rooms, sheds and outbuildings.

Features

  • Porcelain ceiling receptacle lampholders mount on 4 in outlet boxes with breakout for 3.25 in box mounting
  • Leads are 6 in 221 deg F insulated stranded NO 16, stripped 0.75 in
  • Top wire versions have terminal screws backed out - ready for wiring and without removing interior
  • Porcelain models made with high-strength insulator porcelain
  • Pull chain versions feature removable interiors

Specification

Lamp Base
Medium
Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Color
White
Terminal Type
Wire
Voltage Rating
125 VAC
Material
Porcelain
Lamp Wattage
660 W
Includes
Ball Chain, 3 ft Cord, Connector and End Bell
Standard & Approvals
cULus Listed, NOM 426, RoHS Compliant
Application
For areas such as garages, closets, attics, basements, utility rooms, sheds and outbuildings
Type
Pull Chain Ceiling Receptacle
Dimensions
4.5 in Dia x 2.14 in H
Connection Type
Push Wire
Catalog ID
EAG667-SP
