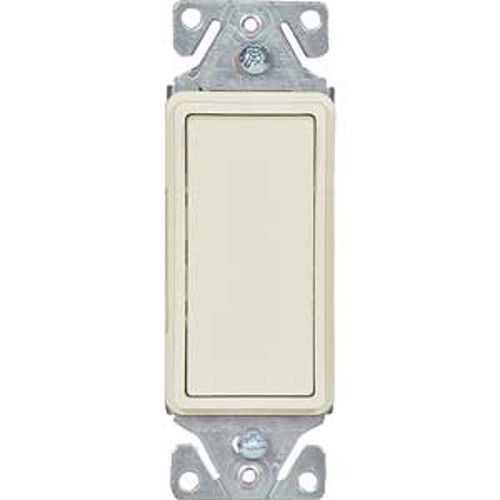

Eaton Wiring Devices 7503V 3-Way Decorative Switch, 120/277 VAC, 15 A
Eaton Wiring Devices 7503V 3-Way Decorative Switch, 120/277 VAC, 15 A
SKU: EAG7503V
Manufacturer Part Number: 7503V
UPC: 032664627699
Documents
Short Description
Features
- Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility
- Push-in terminals accept #14 AWG solid wire
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Long, broad mounting strap virtually eliminates floating installations
- Stippled ground screw terminal standard
- Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
- Lighted switches glow in "OFF" position
- Back and side push wire connection
- Standard grade
- Advanced rocker mechanism assures solid tactile feedback and smooth operation
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Wall |
| Terminal Type | Screw |
| Type | 3-Way |
| Voltage Rating | 120/277 VAC |
| Amperage Rating | 15 A |
| Dimensions | 4.19 in H x 1.44 in W x 0.97 in D |
| Action | Momentary |
| Actuator | Paddle |
| Color | Ivory |
| Environmental Conditions | -20 to 60 deg C |
| Standard & Approvals | cULus Listed, RoHS Complaint, UL File No.E18704, UL Federal Spec WS-896E Listed |
| Application | For fluorescent lighting fixtures and a broad variety of applications |
